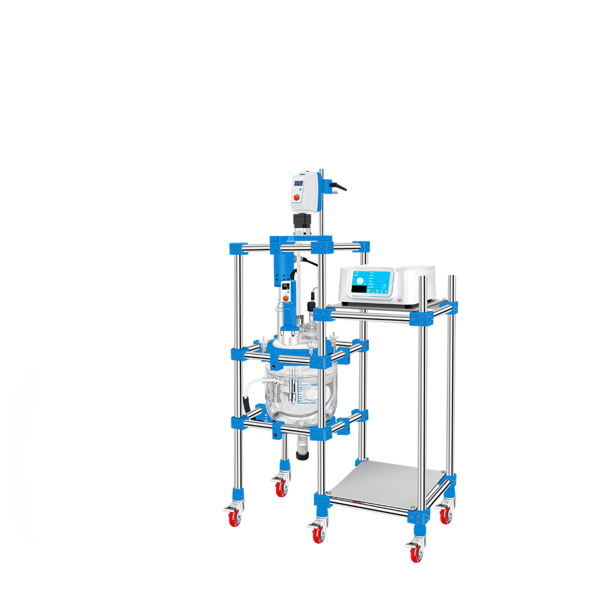

Ultrasonic Reactor (QXM-UR877)

Ultrasonic Reactor (QXM-UR877)

Ultrasonic glass reactor is a kind of multifunctional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquid and ultrasonically treat substances. It can be used to break a variety of animal and plant cells, virus cells, and can be used for emulsification. Separation, homogenization, extraction, defoaming, cleaning and accelerating chemical reactions, etc. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
Features

● High ultrasonic safety with over-temperature, overload and time alarm functions, with user password protection;

● Ultrasonic intelligent storage, which can create and store up to 20 groups of operation programs;

Flexible parameters, continuously adjustable ultrasonic time and power, good stability to meet the needs of different crushing volume;

● Remote control, the ultrasonic host is equipped with remote monitoring communication interface, which can realize remote control of the machine start and stop on the computer;

● Wide processing range, different models of instruments can be applied to different customers’ needs, with 5-50L capacity options;

● Mixer with timing function; brushless motor is noiseless and does not get hot;

● Homogenizing and emulsifying machine available for up to 4 hours without intermittent use; A-G gear adjustment is convenient and quick;

● Intuitive process, no obstructions in front of the glass reactor, the reaction process can be seen at a glance;

● Space-saving, stacked stand design, saving laboratory space;

The glass parts are made of high borosilicate glass, which has excellent corrosion resistance and high and low temperature resistance. Also low linear expansion coefficient can withstand large thermal shock;

● Removable discharge valve for easy discharge of reactor materials;

● All parts in contact with liquid are made of high borosilicate glass or PTFE, which has excellent corrosion resistance;

Homogenization emulsification, ultrasonic treatment and vortex stirring can be operated simultaneously or select any function to open separately.

Technical Specification
Model QXM-UR877
Reactor Capacity 5L
Glass ports 6
Cover diameter 180mm
Length of kettle body 400mm
Stirring Power 60W
Rotating Speed 10-400rpm
Ultrasonic frequency 20-25Khz
Ultrasonic power 1800W
Ultrasonic pulse time on 0.1-99.9s
Ultrasonic pulse time off 0.1-99.9s
Total working hours 1-99h59min59s
Power regulation 1-100%
Tip diameter of horn 20mm
Total length of horn 260mm
Control + display mode TFT touch screen
Data storage 20sets
Voice prompt + alarm function Yes
Temperature protection function Yes
Overload protection function Yes
Transducer air cooling function Yes
Horn material Titanium alloy
Reactor vacuum function Optional
Thermostat function of reactor jacket Optional
Fully enclosed horn function Standard
Inlet port/outlet port/temperature measuring port Standard
Power supply 220V50Hz
Reactor material Borosilicate glass
