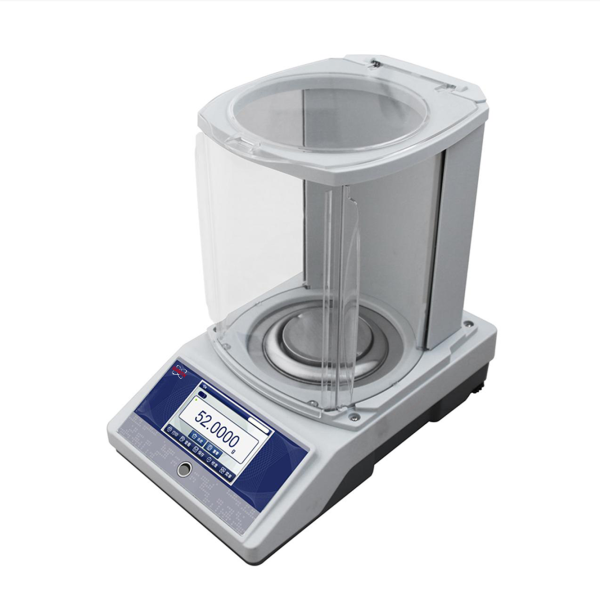

Touch Screen Analytical Balance (QXM-SB Series)

This advanced weighing device features a vibrant 4.3-inch color touch screen, providing an intuitive and user-friendly interface. It is equipped with a high-precision electromagnetic balance sensor to ensure accurate and reliable results. Designed for versatility, it offers a wide range of powerful functions including standard weighing, parts counting, percent weighing, check weighing, animal weighing, and density weighing. The device supports both external and internal calibration for enhanced accuracy and flexibility. Additionally, it allows seamless PC connectivity for efficient data transfer, while optional wireless Bluetooth printing adds further convenience to meet modern operational needs.

Features

4.3-inch color touch screen
Powerful functions: weighing, parts counting, percent weighing, check weighing, animal weighing, density weighing, etc.
Electromagnetic balance sensor
External/Internal calibration
Supports PC connection
Wireless Bluetooth printing is optional

Technical Specification

Model	Maximum Capacity	Calibration	Readability	Stabilization Time	Pan Size	Dimension / N.W.	Shipping Size / G.W.
QXM-SB235	100g	External	0.1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB236	120g	External	0.1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB237	200g	External	0.1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB238	220g	External	0.1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB239	300g	External	0.1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB240	100g	Internal	0.1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB241	120g	Internal	0.1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB242	200g	Internal	0.1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB243	220g	Internal	0.1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB244	300g	Internal	0.1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB245	100g	External	1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB246	200g	External	1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB247	260g	External	1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB248	300g	External	1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB249	500g	External	1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB250	100g	Internal	1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB251	200g	Internal	1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB252	260g	Internal	1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB253	300g	Internal	1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
QXM-SB254	500g	Internal	1mg	≤4s	Φ85mm	360 × 220 × 350 mm / 8 kg	520 × 380 × 500 mm / 10 kg
