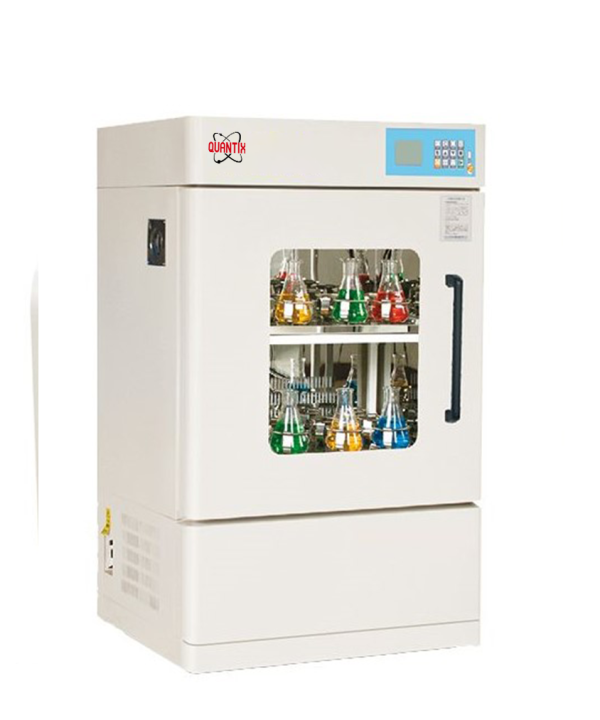

Shaking Incubator (QX-TSI Series)

Applications The oscillator (commonly known as a shaker) is one of the main equipment for microbial culture. Select special motor, temperature control, speed measurement main components are imported, widely used in biology, medicine, pharmaceutical food, environmental protection and agricultural scientific research

Capacity:175L/218L
Convolution shaking
Multidimensional drive
P.I.D microprocessor chip control
LCD display

Features

Intelligent control

Large high efinition LCD display,with intelligent PID control, parameter real-time display.
Automatic locking and alarm for speed deviation, and alarm for temperature deviation.
Reservation timingswitch function.
Three operation modes: forward rotation, reverse rotation, forward and reverse alternately.
It has a multi-stage speed, temperature, and time control system, which allows a variety of different speed, temperature, and time experiment modes to be set once.

Internal circulation system

Silent fan design, forcedair convection and unique air duct design ensure good temperature uniformity.
High efficiency and energy saving compressor, stable temperature control and low power consumption.

Dedicated sheet metal processing

WithABS cabinet, mirror stainless steel lining and chamber components, inclined humanized control panel.

Humanized design

Environmentally friendly refrigerant, CFC free.
The unique multi-dimensional drive system makes the machine run smoothly, stably, durable and reliable.
Built-in observation window to make the objects in the chamber clear at a glance.
The anti-scalding design of the door handle makes it easy to open and close the door.

Safety

With over temperature control of visible& audible alarm system.
The unique dynamic balance design ensures smooth operation, starts at ultra-low speed, and automatically locks when the speed is out of control.
Fault self-diagnosis function,auto-stop operation when door is opened and safety alarm.

Technical Specification

Model	QX-TSI-112		QX-TSI-113	QX-TSI-114	QX-TSI-115
Control mode	P.I.D microprocessor chip
Convection mode	Forced convection
Shake mode	Convolution
Display	LCD display
Drive mode	Multidimensional drive
System of USB data download and analysis	Yes
Control system	Multiple programmable mode(Temp.,speed,time)
Cyclotron frequency range(rpm/min)	0；20-350(To do static culture)
Cyclotron frequency sensitivity(rpm)	±1
Orbit diameter(mm)	Φ26
Max. capacity	100ml×60 or 250ml×38 or 500ml×22 or 1000ml×16			100ml×68 or 250ml×50 or 500ml×32 or 1000ml×18
Standard capacity	250ml×24			250ml×48
Size of platform(mm)	500×360			485×485
Timing range(h)	0-9999h/min(Any time,continuous duty)
Temperature range(℃）	Ambient+5°C~65°C（No refrigeration）		4°C~65°C (Refrigeration）	Ambient+5°C~65°C（No refrigeration）	4°C~65°C (Refrigeration）
Temperature regulate sensitivity(℃）	±0.1
Temperature uniformity(℃)	±0.5（37℃）
Temperature fluctuation(℃)	≤0.1（37℃）
Number of platform	Two
Outside dimension（WDH)（mm）	700×580×1280			700×710×1320
Capacity（L)	175			218
Power（W)	600		850	600	850
Electricity	AC220±10% ,50Hz
Net weight(kg)	160	180		180	200
Gross weight(kg)	210	220		230	240
Other functions	Ultra-low speed start, Adjustable start speed，over-speed auto-prtection，Watch dog timer，Parameters Storage，Encryption parameters，Electricity incoming recovery，Refrigeration unit overload protection，Sound and light alarm when upper and lower over-temperature，Automatically stop when opening the door (optional)，Function of lighting and UV disinfection
