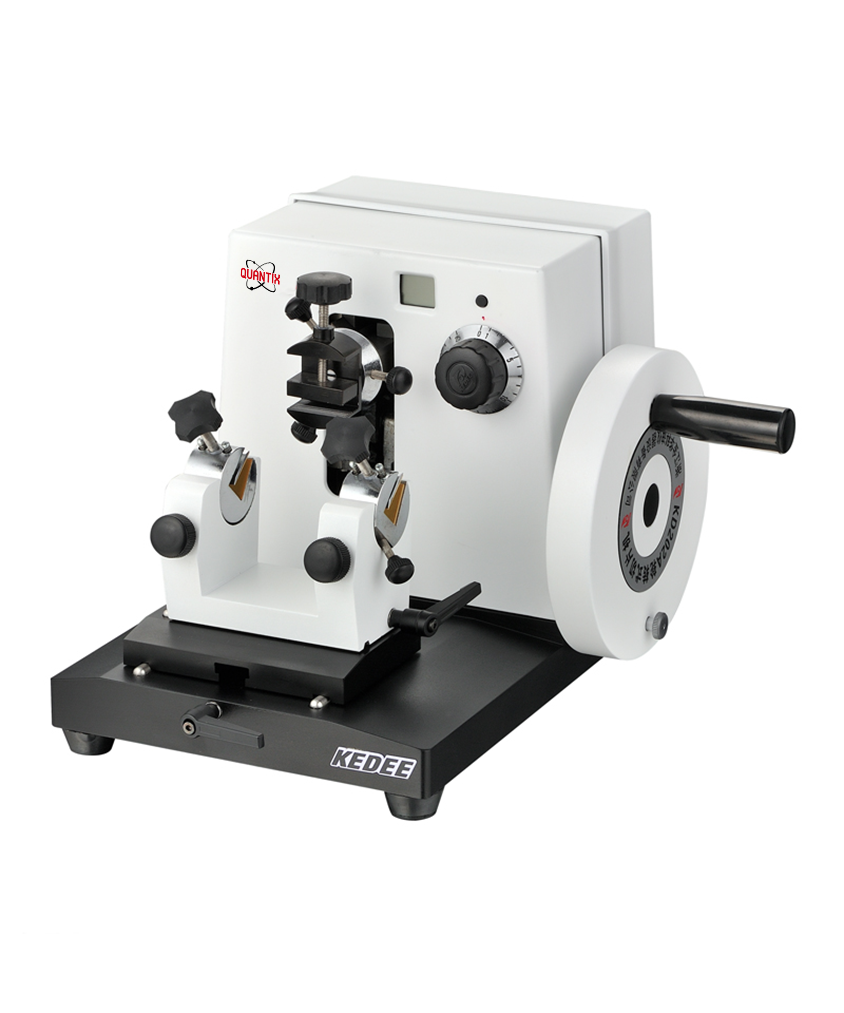

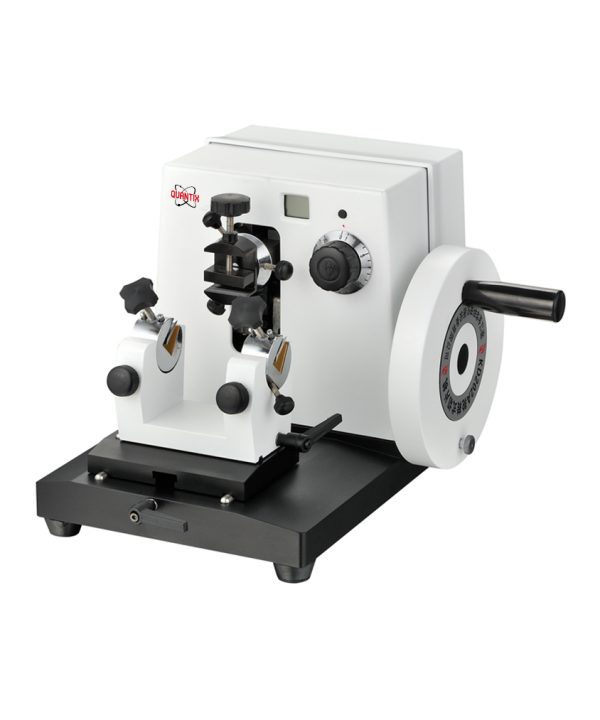

Rotary Microtome (QTX-R21)

Rotary Microtome (QTX-R21)

Description

Rotary Microtome is a new  possessing multiple features, such as a neat streamlined-shape housing, a hand-wheel that can be locked at the highest position, safe change specimen cassette, and LCD display and safety alert system. This well-made and cost-competitive product can provide evenly sliced sections reliably and safely.
  1. Easy-to-clean housing
  2. Blade holder can be moved forward-or-backward and left-or-right resulting in easy trimming and sectioning operations
  3. LCD screen shows the number of sections and trims, equipped with a safety alarm system
Application: Used for plants, animals, biology, internal organs, bones in Research institutes, scientific research units
Features

QXM-H539

  1. Maximum Specimen Size: 36mm×22 mm
  2. Section Thickness Setting Range:  1 – 25μm
  3. Total Horizontal Specimen Feed: 30mm
  4. Vertical Specimen Stroke: 55mm
  5. For paraffin section, Conventional slices
  6. Equipped with safety alarm system
Technical Specification



Section thickness range 1~25μm continuous slicing, >25μm arbitrarily adjust the slice thickness
Trimming Thickness Setting Range  0– 500μm
Minimum Setting of Sectioning Thickness  1μm
Specimen Orientation  XY – 8°
Total Horizontal Specimen Feed  30mm
Vertical Specimen Stroke  55mm
Movement Range of the Base of Blade Holder Base  0-50mm (front and back)
Movement Range of the Base of Blade Holder Base  0-20mm(left and right)
Maximum Specimen Size 36mm×22 mm (optional clamp40mm×32 mm) Standard wax block clip
Precision Error  ±5%
Dimensions  340×335×270mm(W×D×H)
Net weight  19kg
