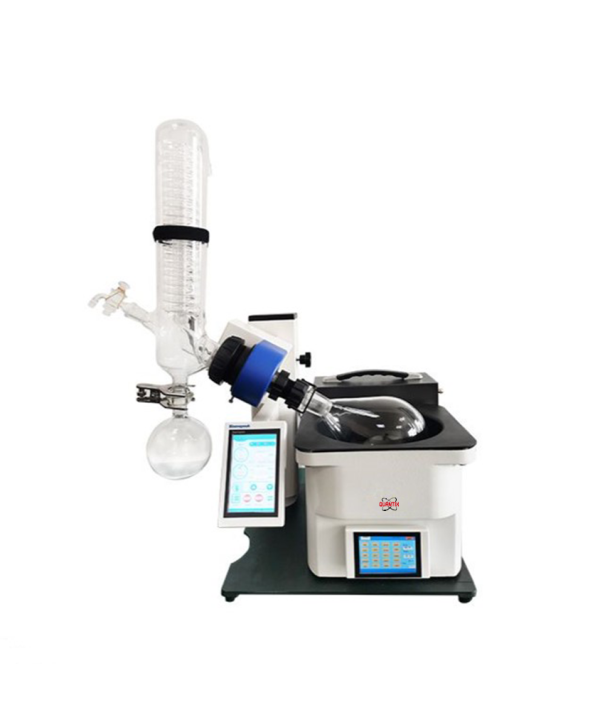

| Model | QXRE-100TR |
| Use Range of Sample Bottle | 25~1000ml |
| Rotation Speed | Touch screen display, 0~310rpm |
| Vacuum Control | Vacuum control range; 0~-0.1Mpa (0~1013mbar); precision ±1Mpa (, vacuum degree can be controlled arbitrarily.
Automatic pressure release at the end of the experiment, jog/one-key pressure release function; 10-stage gradient distillation program control, step-by-step control of vacuum degree during synthesis experiment chromatography vacuum distillation; commonly used 40 kinds of experimental data storage, one-key start, fast distillation. |
| Evaporation Capacity | Max.25mL/min(H2O) |
| Equipment Vacuum | The vacuum inside the equipment can reach 2mbar. |
| Temperature Adjustment Range | Water and oil dual-purpose bath, water bath: room temperature ~99°C, ±0.5; oil bath: room temperature ~210°C, ±2°C; |
| Material of Heating Bath | One-time forming Teflon coating, easy to clean, corrosion resistance, high temperature resistance; heating pot with safety handle, shell heat insulation, prevent scald, moderate volume, rapid heating; equipped with a transparent protective cover: heat preservation, energy saving, explosion-proof, anti-corrosion splash. |
| Bath Dimension | φ20*11.5cm (approximately 3.5L), the sliding base of the heating bath can freely move 120mm to the right. |
| Sample Bottle | Forward rotation, reverse rotation, intermittent forward and reverse rotation, the intermittent time can be adjusted from 0 to 60s, which can be used for drying powder samples. |
| Temperature Control | Dual touch screen control system, digital display, over-temperature warning, automatic lifting, automatic pressure relief, and equipment shutdown functions. |
| Temperature Setting | Touch-type digital input setting, dual-screen control display, convenient and quick. |
| Safety Performance | Anti-dry over-temperature early warning, abnormal rotating motor early warning, automatic lifting of the sample bottle to the highest;
Timing function (0~999min), when the preset time is reached, the equipment will automatically release the pressure, lift and lower the evaporating bottle automatically, and the equipment will be standby for early warning and protection. |
| Heater | Fully enclosed heater. Power 1kW |
| Sealing Parts | Imported PTFE special synthetic material is selected, and the abrasive tool is synthesized through special process technology to enhance sealing, corrosion resistance and wear resistance. |
| Condenser | Vertical, three-layer ball mill mouth serpentine condenser, condensation area 0.18m², with drop point and backflow design (effectively improve work efficiency). |
| Ambient Temperature | 5~40℃ |
| Electricity | AC220V/50Hz |
| External Dimensions | 55*36*64cm |
| Shipping Dimensions | 67*50*46.5cm |
| G.W, | 34kg |
| Factory Configuration | Sample bottle 1L*1; recovery bottle S35# ball mill mouth collection bottle 0.5L*1. |
