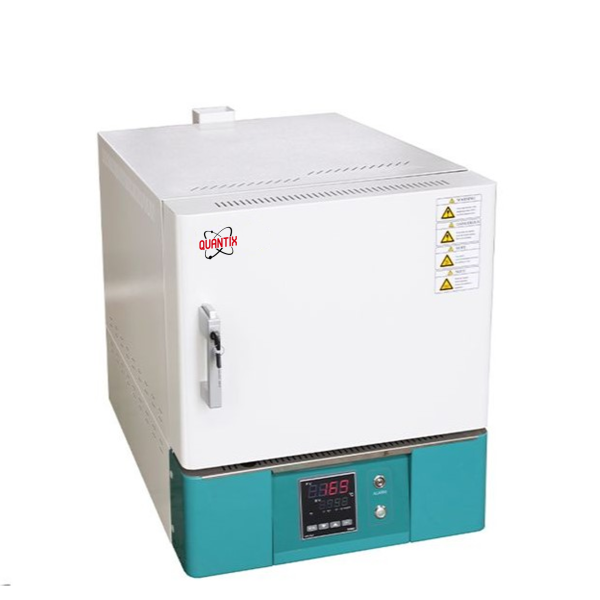

Muffle Furnace (QTX-MF Series)

Muffle Furnace (QTX-MF Series)

Safety Double layer steel structure with air cooling fan to keep furnace’s exteriors safe to touch; Safety interlock with automatic power off the furnace when door is opened; Optional Different chamber size for your choose; LCD touch screen control for choose Content may be subject to modifications or corrections
Muffle Furnace (QTX-MF Series)
Features
  • 1200°C maximum operating temperature;
  • High purity fibrous alumina insulation for maximum energy saving;
  • Single-stage temperature controller
Technical Specification
Model QTX-MF112 QTX-MF113 QTX-MF114 QTX-MF115
Heating mode Alloy wire heating in three sides left; right; top side.
Temperature Max. Temp(℃) 1200
Accuracy(℃) ±1
Heating Rate ≤30min
Chamber Dimension(W*D*H)(mm) 120*200*80 200*300*120 200*300*200 250*400*160
External Size(W*D*H)(mm) 450*685*600 530*785*640 530*785*720 600*895*700
Capacity(L) 2 7 12 16
Heating Element Alloy heating wire
Thermocouple E :Platinum-rhodium sensor.
Chamber Material Ceramic fiber
Outer shell cold rolling steel electrostatic spraying exterior
Electricity AC220V/6.6A
50/60HZ		 AC220V/13.6A
50/60HZ		 AC220V/20.4A
50/60HZ		 AC380V/9.9A
50/60HZ
Max. Consumption 1.5kW 3.0kW 4.5kW 6.0kW
