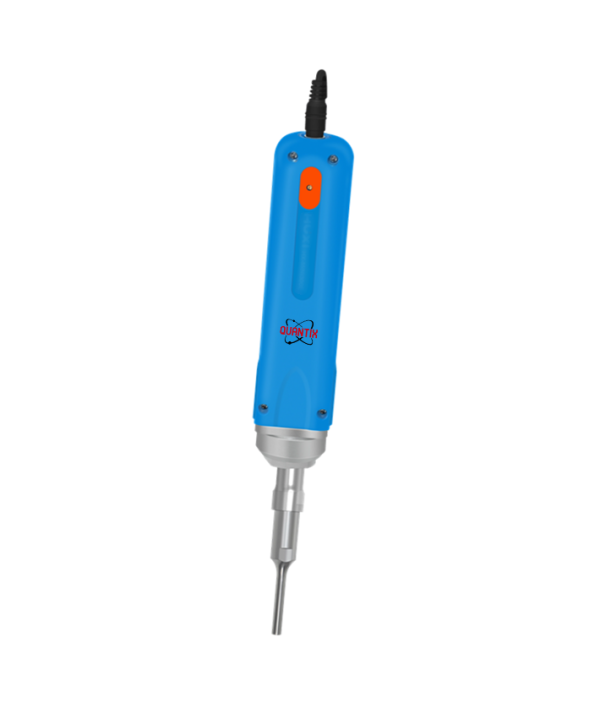

Mini Ultrasonic Homogenizer (QXM-MH862)

MiNi type ultrasonic crusher QXM-MH862 is a sample pre-treatment instrument which adopts integrated structure design to use ultrasonic waves to produce cavitation effect in liquid, and it is mainly suitable for dispersion of nanomaterials, cell wall-breaking extraction and crushing, homogenisation and mixing, chemical synthesis, and emulsification of oil and water.

Features

Wide voltage design, can be applied to a wide range;
One-piece structure design, compact shape, lightweight and exquisite;
A variety of amplitude lever specifications can be selected, with a wide range of processing, up to 300mlFrequency tracking and amplitude compensation adopts automatic mode, stable load and high electro-acoustic conversion rate;
Amplitude lever adopts titanium alloy material, high strength, corrosion resistance, heat resistance, long service life;
It can be used handheld or fixed with optional bracket, which is suitable for ultrasonic treatment of micro or small amount of samples.

Technical Specification

Product parameters：
Model	QXM-MH862
Power	10-300W (manually adjustable setting)
Capacity	0.1-300ml
Ultrasonic Control mode	Lockable key
Single Ultrasonic time	＜60min (considering the sample temperature)
Operation Mode	Continuous
Frequency	30KHz
Standard Horn	Φ6mm
Optional Horn	Φ2, 6, 8mm
Material of Horn	TC4 titanium alloy
Input Voltage	100-230V/AC 12-24V/DC
Shell Material	ABS
Optional	Fixed bracket
NW/GW	0.5/1kg
Instrument size (LWH)	300*φ43mm
Packing size (LWL)	338288110mm
