1.Grace and new modeling
Drop-style integrated appearance design, looks elegant.
2.Viewing head
Brand new and humanized butterfly binocular head-tubes can be 360° rotated to raise observing height 44mm than normal tubes to be more convenient for users with different height.
3.Stability
Unique viewing head and integrative stand to ensure stability.
4.Power supply
5V-12V low voltage input to ensure safe use. Built-in LED illumination system which can be powered with power bank, laptop and vehicle power supply ensures being used anywhere and any condition.
5.Objectives
Unique and innovative low power light-reducing objective (Optional) ensures high power and low power objectives interconverted without light adjustment.
6.Storage bin
Humanized storage bin on the stand back makes moving and items storage more convenient.
7.Observing window
Observing window ensures objective magnification can be watched from back.
| Item | Specification | BXM-BL51M | BXM-BL51B | BXM-BL51T | |
| Optical System | Color Corrected Finite Optical System | ● | ● | ● | |

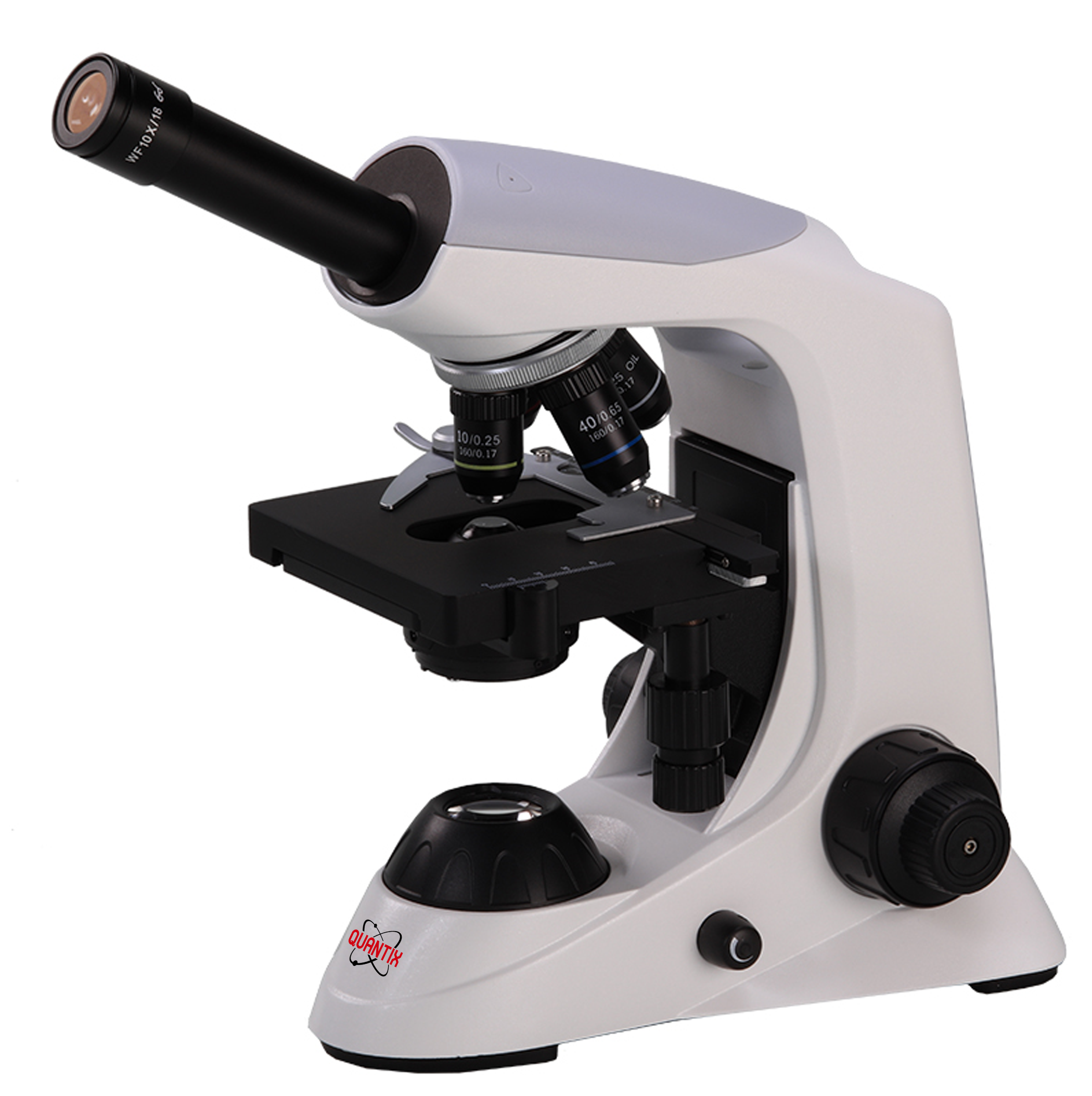

| Viewing Head | Inclined 30° monocular tube | ● | |||

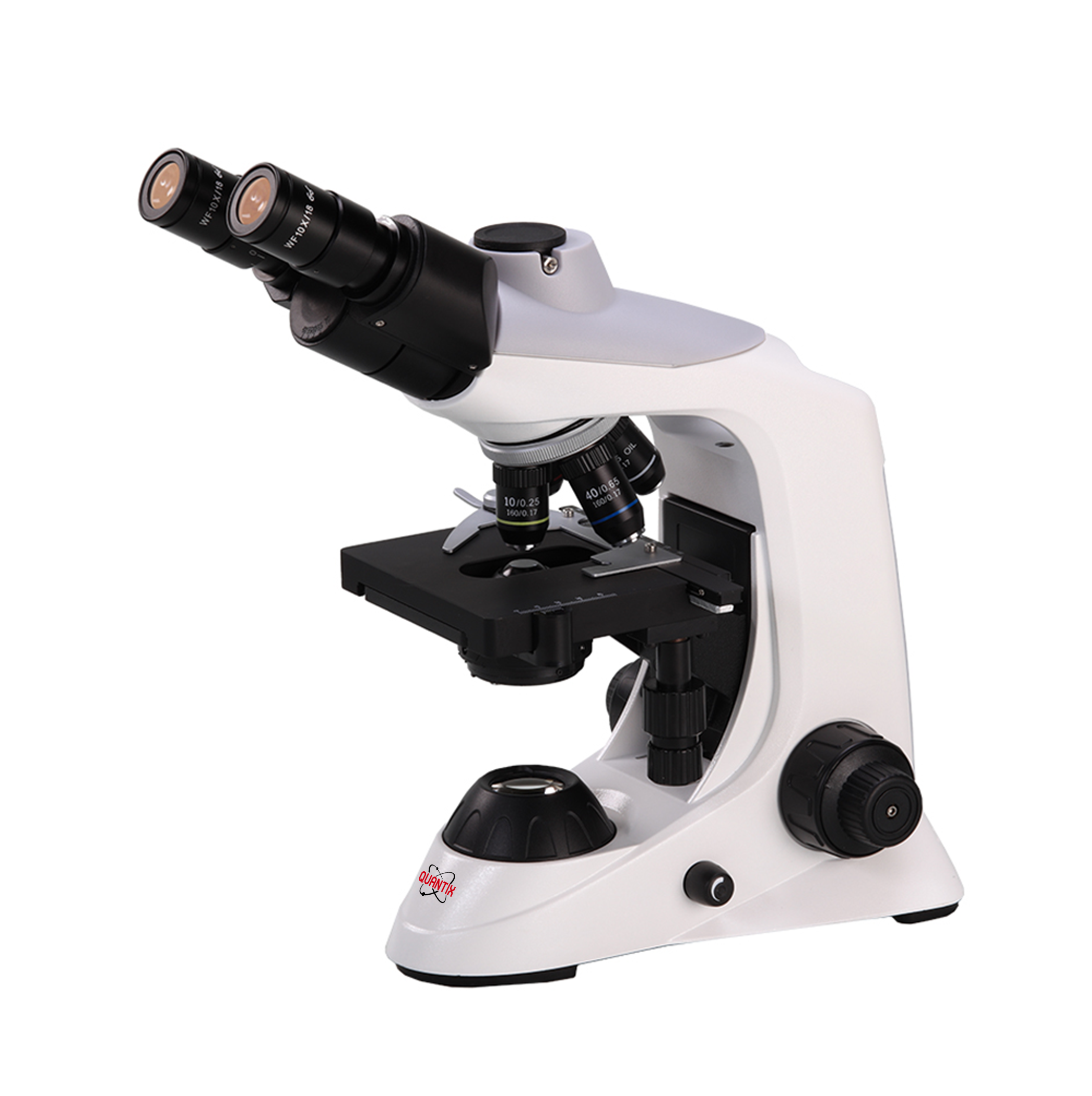

| Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48-75mm | ● | ||||
| Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-75mm, splitting ratio: eyepiece: trinocular=20:80 | ● | ||||
| Eyepiece | Wide field eyepiece WF10X/18mm (pointer is optional) | ● | ● | ● | |
| Wide field eyepiece WF16X/13mm | ○ | ○ | ○ | ||
| Wide field eyepiece WF10X/18mm, with reticule 0.1mm | ○ | ○ | ○ | ||
| Wide field eyepiece WF10X/18mm, adjustable, with reticule 0.1mm | ○ | ○ | ○ | ||
| Infinite Objective | Achromatic Objectives | 4X/ NA 0.10 | ● | ● | ● |
| 10X/ NA 0.25 | ● | ● | ● | ||
| 20X/ NA 0.40 | ○ | ○ | ○ | ||
| 40X/ NA 0.65 (S) | ● | ● | ● | ||
| 60X/ NA 0.80 (S) | ○ | ○ | ○ | ||
| (Oil) 100X/NA 1.25 (S) | ● | ● | ● | ||
| Plan Achromatic Objectives | 4X/ NA 0.10 | ○ | ○ | ○ | |
| 10X/ NA 0.25 | ○ | ○ | ○ | ||
| 40X/ NA 0.65 (S) | ○ | ○ | ○ | ||
| (Oil) 100X/ NA 1.25 (S) | ○ | ○ | ○ | ||
| Nosepiece | Backward Quadruple Nosepiece | ● | ● | ● | |
| Mechanical Stage | Stage size: 125mm*115mm. Travel: 35mm*75mm. | ● | ● | ● | |
| Condenser | Abbe condenser NA 1.25 with iris diaphragm | ● | ● | ● | |
| Focusing | Coaxial coarse and fine focusing knob, coarse focusing travel range: 25mm, fine division: 2µm | ● | ● | ● | |
| Illumination | 3W LED lamp | ● | ● | ● | |
| Dark Field Unit | Dark Field Ring, used for 4X-40X objectives | ○ | ○ | ○ | |
| C-mount | 0.5X C-mount adapter, adjustable focus | ○ | ○ | ○ | |
| 1X C-mount adapter | ○ | ○ | ○ | ||
Note: ● Standard Accessories ○ Optional Accessories
