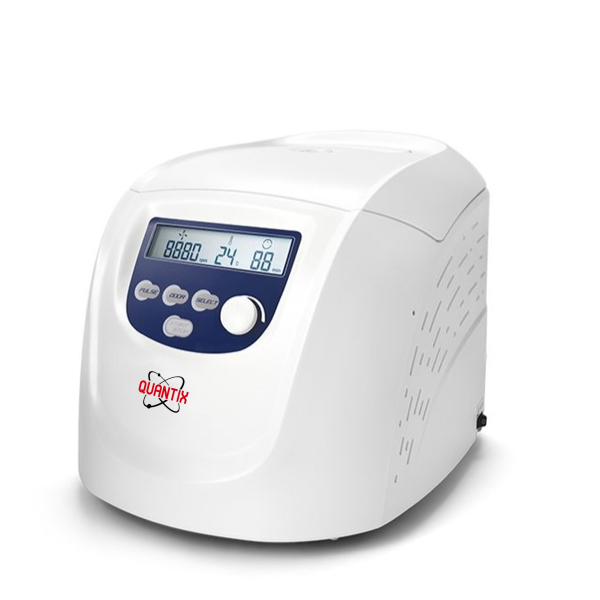

Microematocrit Centrifuge (QTX-MC Series)

Speed range of 200-12000rpm Precise and independent control of speed and time.
Easy operation with intuitive menu and LCD display.
Maintenance-free brushless DC motor.
Pulse operation for fast and convenient quick spins.
Advance features include speed/RCF switch; short-time run function;audible alert function.
Safety features include door interlock, overspeed detector;over-temperature detector; automatic internal diagnosis and automatic rotor identification.

Features

QTX-MC Features

Technical Specification

Specifications	QTX-MC150	QTX-MC250
Speed Range	200-12000rpm, increment: 10rpm	500-12000rpm, increment: 100rpm
Max. RCF	13680×g	13680×g
Speed Accuracy	±20	±100
Run Time	30sec-99min/Continuous	10sec-99min/Continuous
Motor	Brushless DC motor	Brushless DC motor
Display	LCD	LCD
Safety Devices	Door interlock, Overspeed detector; Automatic internal diagnosis, Automatic rotor identification	Door interlock
Acceleration/Braking time	30s↑30s↓	40s↑40s↓
Power	Single-phase, 200V-240V,50Hz/60Hz, 5A; 100V-120V,50Hz/60Hz, 5A 160W	Single-phase, 200V-240V,50Hz/60Hz, 5A; 380W
Dimension[W×D×H]	280mm×364mm×274mm	280mm×364mm×213mm
Weight	10.5kg	8.5kg
Advanced features	Speed/RCF switch; Short-time run function; sound-alert function	Speed/RCF switch; Short-time run function; sound-alert function

Innovative Technologies
