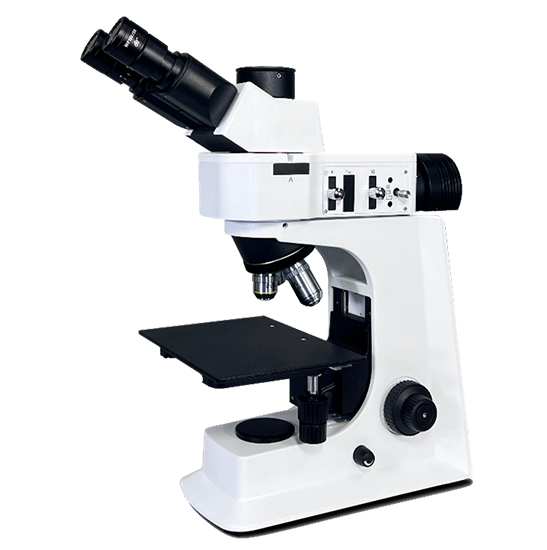

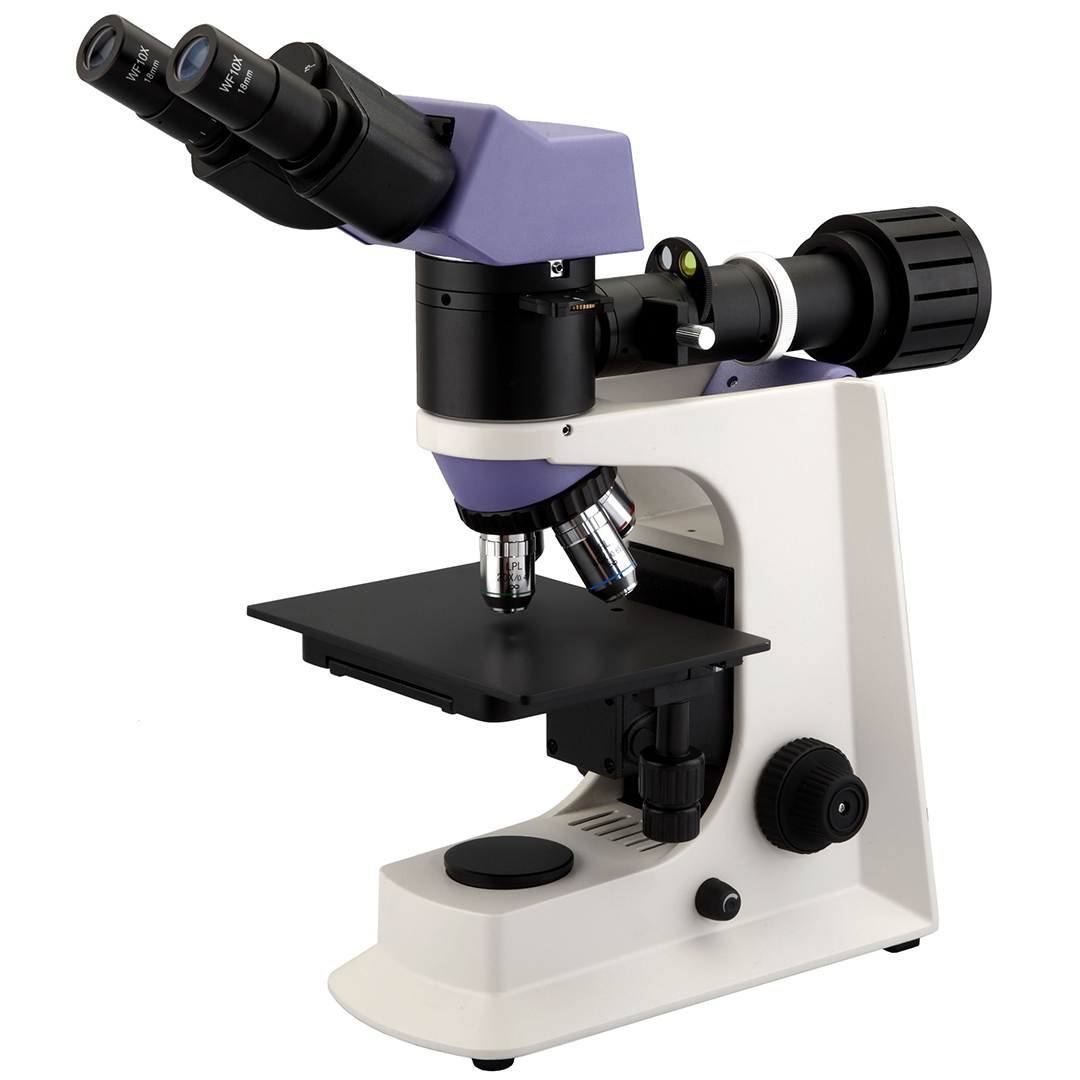

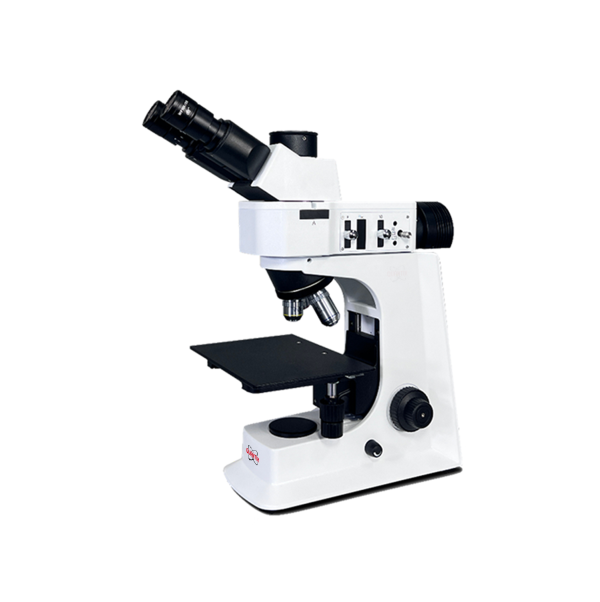

This Metallurgical Microscopes are widely used for PCB board, LCD display and metal structure observation and inspection. It also can be used for analysis of mineral stones and similar materials.
1. Widely used in industrial and mining enterprises, teaching, research and other fields.
2. Precision instruments for inspection, analysis and research of electronic, metal and alloy materials, minerals, geology areas.
3. Complete infinite long working distance metallographic objective.
4. Provide bright field and polarized light observation.
5. 5V-12V Low voltage input can ensure safe use, power bank can be used for power supply, which is more convenient for field inspection and power-short condition.
6. Product details are as following:
L.W.D Metallurgical Objective
200mmX140mm Stage
| Item | Specification | QXM-MCR249BR | QXM-MCR249TR | QXM-MCR249BTR | QXM-MCR249TTR |
| Optical System | Infinite Optical System | ● | ● | ● | ● |
| Viewing Head | Seidentopf binocular head, inclined at 30°, Rotatable 360°, interpupillary distance 48-75mm | ● | ● | ||
| Seidentopf trinocular head, inclined at 30°, Rotatable 360°, interpupillary distance 48-75mm, Light Distribution 80(camera):20(eyepiece) | ● | ● | |||
| Eyepiece | WF10×/20mm (High eyepoint) | ● | ● | ● | ● |
| WF10×/20mm with 0.1mm micrometer | ○ | ○ | ○ | ○ | |
| Long Working Distance
Infinite Plan Objective (no cover glass) |
5×/0.13/∞/- WD 16.04mm | ● | ● | ● | ● |
| 10×/0.25/∞/- WD 18.48mm | ● | ● | ● | ● | |
| 20×/0.40/∞/0 WD 8.35mm | ○ | ○ | ○ | ○ | |
| 50×/0.70/∞/0 WD 1.95mm | ● | ● | ● | ● | |
| 80×/0.80/∞/0 WD 0.85mm | ○ | ○ | ○ | ○ | |
| 100×/0.85/∞/0 WD 3.00mm | ○ | ○ | ○ | ○ | |
| Nosepiece | Backward Quadruple Nosepiece | ● | ● | ● | ● |
| Backward Quintuple Nosepiece | ○ | ○ | ○ | ○ | |
| Stage | Double layer mechanical stage 200×140mm, moving range 76×52mm | ● | ● | ● | ● |
| Focusing | Coaxial Coarse & Fine Focusing Knob, Travel Range: 26mm, Scale: 2um | ● | ● | ● | ● |
| Illumination | Epi-illumination with iris aperture diaphragm, 5W LED lamp, Brightness adjustable | ● | ● | ● | ● |
| Transmitted Illumination, 3W LED Lamp, Brightness Adjustable | ○ | ○ | ● | ● | |
| Filters | Five-hole filter unit(blue, green, amber, grey, empty) | ● | ● | ● | ● |
| Polarizing Set | Analyzer/ Polarizer | ○ | ○ | ○ | ○ |
| Specimen Presser | For metallurgical specimen preparation | ○ | ○ | ○ | ○ |
| C-mount | 1× | ○ | |||
| 0.5× (Focus Adjustable) | ○ | ||||
| Packing Size | 570mm×275mm×450mm, Gross Weight: 10.5kgs, Net Weight: 8 kgs | ● | ● | ● | ● |
Note: ● Standard Accessories ○ Optional Accessories
