● Imported compressor with proportional refrigeration technology and PID technology, the refrigeration system has a long service life and is more energy-saving;
● Built-in pressure suction pump, large flow, long head, stable water flow, can withstand the temperature of 80~300℃, long-term temperature work;
● High temperature direct drop technology (CIT technology), which can directly cool down even at high temperature;
● The pump head supports short-term idling to prevent operation errors, and the equipment can be tested;
● Equipped with a drain port to prevent accidents;
● Resistant to metallic and non-metallic hard impurities and fibers brought in from the outside, and has a long service life.

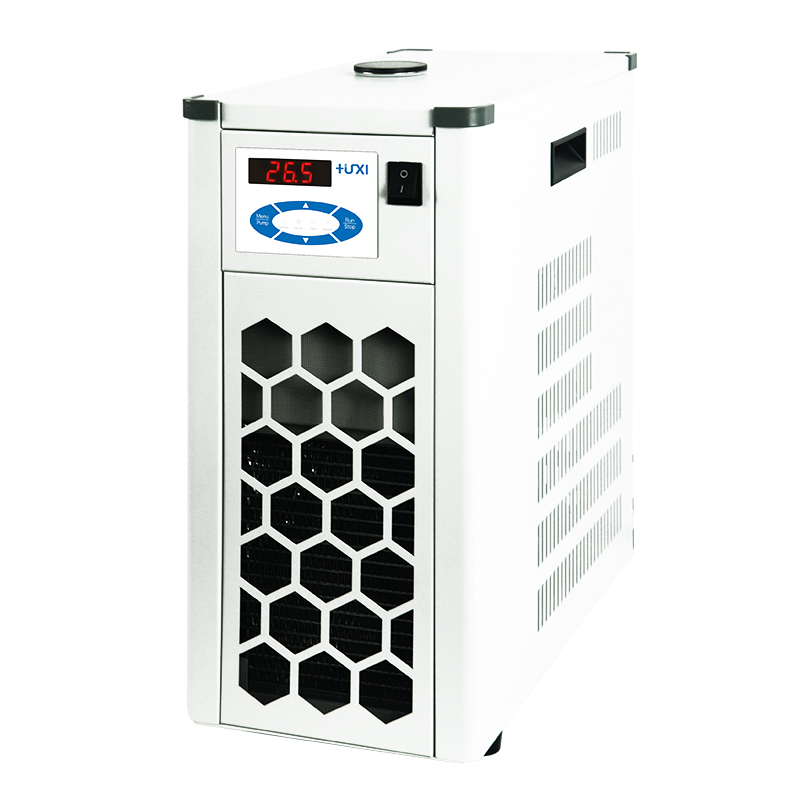

| Model | QXM-LP466 |
| Tank Capacity(L) | 5 |
| Temperature Range(℃) | -20~RT |
| Temperature fluctuation value(℃) | ±0.3 |
| Set Temperature Accuracy(℃) | ±0.1 |
| Display accuracy(℃) | ±0.1 |
| Cooling power(W) | 600 |
| Cooling capacity(W) | 700 |
| Refrigerant | R404A |
| Heating power W | / |
| Display temperature method | LED |
| How to set | Membrane keys |
| Security | Over temperature protection |
| Use ambient temperature ℃ | 5~32 |
| Supply voltage V | 200-230 |
| Circular way | Exterior Circulation |
| Flow L/min(Max/Rated) | 22/15 |
| Head M (max/rated) | 3.0/2.0 |
| Loop interface | 10mm pagoda connector |
| Net weight kg | 28 |
| gross weight kg | 30 |
| Dimensions mm (W*D*H) | 220*420*495 |
| Packing Dimension mm（W*D*H） | 500*290*560 |
Quantix Equipment is a rapidly growing leader in innovation and quality, specializing in the development and supply of advanced pharmaceutical testing equipment and support services.
