1.High quality, high function and excellent cost performance.
2.High resolution, Wide viewing field, long working distance.
3.Ergonomic design, sharp image display, wide viewing field and easy to operate.
4.Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
5.Ideal instrument in academic, medical and industrial field.

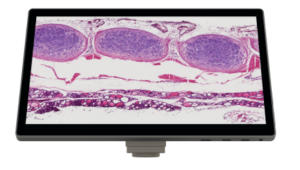

6.BLM4-320 adopts all-in-one touch camerathat integrates a 1inch LCD touch screen with HDMI output of 1920*1080@60fps, and dual USB ports for USB disk and mouse. It has Android 12 operation system and measurement function.
| Item | Specification | QXM-AI222 | |
| LCD Digital Camera | BLC-240A All-in-One Touch Camera with HDMI output, 1920*1080@60fps, 10.1inch LCD touch screen with Android 12 operation system and measurement function. Dual USB ports for USB disk and mouse. | ● | |
| Viewing Head | Trinocular head, inclined at 45°, interpupillary distance, 55-75mm | ● | |
| Eyepiece | Wide field eyepiece 10×/ 20mm | ● | |
| Wide field eyepiece 15×/ 16mm | ○ | ||
| Wide field eyepiece 20×/ 12mm | ○ | ||
| Wide field eyepiece 30×/8mm | ○ | ||
| WF10× Eyepiece with cross line | ○ | ||
| Objective | Zoom objective | 0.7×～3× | ○ |
| 1×～4.5× | ● | ||
| Auxiliary objective | 2×, W.D.: 30mm | ○ | |
| 0.75×, W.D.: 120mm | ○ | ||
| 0.63×, W.D.: 137mm | ○ | ||
| 0.5×, W.D.: 180mm | ○ | ||
| Zoom Ratio | 1:4.3 | ○ | |
| 1:4.5 | ● | ||
| Working Distance | 97mm | ● | |
| Focusing | Coarse focus, focusing range 100mm | ● | |
| Illumination | Incident illumination 100V-240V/ LED | ● | |
| Transmitted illumination 100V-240V/ LED | ● | ||
| Attachment | Photo attachment (used for connecting Nikon or Canon DSLR camera to the microscope) | ○ | |
| Video attachment (0.5× C-mount) | ● | ||
Note: ● Standard Accessories ○ Optional Accessories
