1.Comfortable operation with ergonomic design, easy to handle by students.
2.Rechargeable LED illumination system is optional.The microscopes can work when there is no power supply.
3.External power supply, safe and easy to maintain.
4.Compact and flexible, ideally suited for desktop, laboratory worktable.

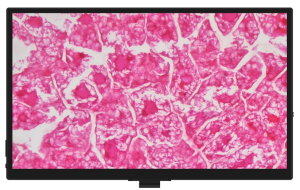

5.BLM5-227adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
| Item | Specification | QXM-SC112 | |
| Optical System | Finite Optical System | ● | |
| LCD Digital Camera | BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. | ● | |
| Viewing Head | Seidentopf trinocular head, inclined at 30°, 360° rotatable, with locking mechanism for eyepieces, ±5 diopter adjustment on left tube, interpupillary distance 50-75mm, light distribution eyepiece: trinocular=80:20 | ● | |
| Eyepiece | Wide field plan eyepiece PL10×/18mm | ● | |
| Wide field plan eyepiece PL10×/18mm with pointer | ○ | ||
| Wide field plan eyepiece PL10×/18mm with eyepiece micrometer | ○ | ||
| Objective | Achromatic Objective | 4X/0.10, WD=21.50mm | ● |
| 10X/0.25, WD=6.26mm | ● | ||
| 40X (S)/0.65, WD=0.48mm | ● | ||
| 100X (S, Oil)/1.25, WD=0.15mm | ● | ||
| Plan Achromatic Objective | 4X/0.10, WD=15.09mm | ○ | |
| 10X/0.25, WD=8.57mm | ○ | ||
| 20X/0.40, WD=8.72mm | ○ | ||
| 40X (S)/0.65, WD=0.38mm | ○ | ||
| 100X (S, Oil)/1.25, WD=0.09mm | ○ | ||
| Nosepiece | Backward Quadruple Nosepiece | ● | |
| Stage | 132mm*140mm double layers mechanical stage, moving range: 50mm*76mm, precision: 0.1mm. | ● | |
| Focusing | Low-position coarse and fine adjustment with stop and tighten structure, moving range: 25mm, fine precision 0.002mm | ● | |
| Condenser | NA 1.25 Abbe condenser with iris diaphragm and filter holder | ● | |
| Illumination | 3W LED (cold color temperature or warm color temperature is optional, cold color temperature 4750K-5500K, warm color temperature 2850K-3250K), center presetting, intensity adjustable, external wide voltage AC adapter, 100V-240V_AC50/60Hz input, DC6V 2A output. | ● | |
| 3W LED (cold color temperature or warm color temperature is optional, cold color temperature 4750K-5500K, warm color temperature 2850K-3250K), center presetting, intensity adjustable, with rechargeable battery compartment (for 4pcs Ni-MH AA battery, battery not included), external wide voltage AC adapter, 100V-240V_AC50/60Hz input, DC6V 1A output. | ○ | ||
| C-mount Adapter | 0.35× C-mount (Adjustable) | ○ | |
| 0.5× C-mount (Adjustable) | ● | ||
| 0.65× C-mount (Adjustable) | ○ | ||
| 1× C-mount (Adjustable) | ○ | ||
| Trinocular tube 23.2mm for digital eyepiece | ○ | ||
Note: ● Standard Accessories ○ Optional Accessories
