1.Comfortable operation with updated and ergonomic design.
2.LED light illumination, save energy and long working life.
3.Compact and flexible, ideally suited for desktop, laboratory worktable.
4.It adopts all-in-one touch camerathat integrates a 1inch LCD touch screen with HDMI output of 1920*1080@60fps, and dual USB ports for USB disk and mouse. It has Android 12 operation system and measurement function.
| Item | Specification | QXM-IC167 |

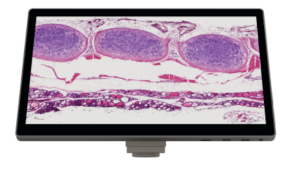

| LCD Digital Camera | BLC-240A All-in-One Touch Camera with HDMI output, 1920*1080@60fps, 10.1inch LCD touch screen with Android 12 operation system and measurement function. Dual USB ports for USB disk and mouse. | ● |
| Viewing Head | Seidentopf trinocular head, inclined at 30°, 360° rotatable, interpupillary distance 55-75mm | ● |
| Eyepiece | WF10×/18mm | ● |
| WF16×/11mm | ○ | |
| WF25×/8mm | ○ | |
| Objective | Achromatic Objective 4×, 10×, 40×, 100×(Oil) | ● |
| Achromatic Objective 20×, 60× | ○ | |
| Nosepiece | Backward quadruple nosepiece | ● |
| Stage | Double layer mechanical stage 132mm*142mm/ 75mm*40mm | ● |
| Focusing | Coaxial coarse & fine adjustment, fine division 0.004mm, coarse stroke 37.7mm per rotation, fine stroke 0.4mm per rotation, moving range 24mm | ● |
| Condenser | Abbe NA 1.20 with iris diaphragm and filter | ● |
| Illumination | 1W S-LED illumination, brightness adjustable | ● |
| Halogen lamp 6V/ 20W, brightness adjustable | ○ | |
| Immersion oil | 5ml Immersion oil | ● |
| Optional Accessories | Phase contrast kit | ○ |
| Dark field attachment | ○ | |
| Polarization attachment | ○ | |
| Rechargeable battery | ○ | |
| 0.5× C-mount adapter | ● | |
| 1× C-mount adapter | ○ | |
| 0.37×, 0.5×, 0.75×, 1× reduction lens | ○ |
Note: ● Standard Accessories ○ Optional Accessories
