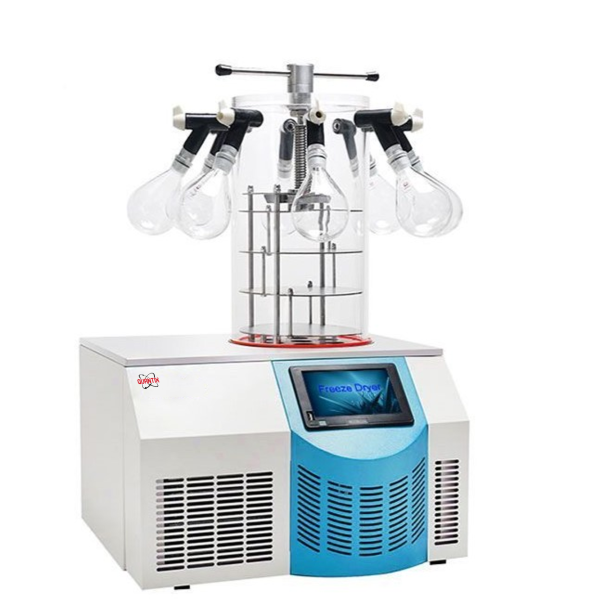

Laboratory Freeze Dryer (QT-XLF-D Series)

7 inches colorful touch panel can display the product sample’s temperature, Condenser temperature and vacuum etc in digital and curve.
Touch panel with the design conforms to ergonomics and operate more comfortably.
Compact bench-top design with a small footprint.
With USB interface to export the data, convenient for user information management.
Large-volume stainless steel condenser without coils, which can realize independent sample pre-freezing

Features

Technical Specification

Model		QT-XLF-D100	QT-XLF-D200	QT-XLF-D300	QT-XLF-D400
Type		Standard chamber	Standard chamber with 8 port manifolds	Stoppering chamber	Stoppering chamber with 8 port manifolds
Freeze Drying Area(m²)		0.12		0.09
Tray(Qty)		4/6(Optional)pcs		3pcs
Tray Dimensions(Diameter*H)(mm)		Φ200*20		Φ200*20
Height Between Trays(mm)		76/50		70(average)
Condenser Temperature (℃)		-60	-60	-60	-60
Condenser Capacity (L)		6.5	6.5	6.5	6.5
Condenser Dimensions(Diameter*H)(mm)		Φ215*190	Φ215*190	Φ215*190	Φ215*190
Vacuum Degree(no-loading) (Pa)		≤5	≤5	≤5	≤5
Ice Condensing Capacity (kg/24h)		3	3	3	3
Loading Capacity/ Shelf (mL)		300	300	300	300
Total Loading Capacity(mL)		1200	1200	900	900
Drying Chamber Dimensions(standard)		Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm
Total Qty. Of Vial Φ22		260		195
Total Qty. Of Vial Φ16		480		360
Total Qty. Of Vial Φ12		920		690
Refrigerant		CFC-free
Standard Accessories		Vacuum pump 2L/s,8m³/h,material tray,material rack,PC cover(for all modes) Conical-mouth flask 500mL8 pcs,switch valve8 pcs(only for model 1P/PT)
Optional Function&Accessories		Electric defrost function,nitrogen gas filling valve,oil mist filter(for all models) 800mL wide-mouth flask(only for model 1P/PT)
Consumption		0.85kW
Electricity		AC220V,50Hz(standard), other electricity type can be customized
External Dimensions(WDH)(mm)		600540374/820		600540374/880
Package Dimension(WDH)	Main body	720680600mm
	Drying chamber	360360600mm
	Vacuum pump	600230380mm
Gross Weight		110kg
