Advantages
Automatic&User-friendly one-key operation
Wet and dry sample dispersion system Integrated Design.
Automatic&manual operation mode are designed to freely choose.
realize one key to switch
Good dispersion structure
Full built-in Sample dispersion system ensures precise test result.
Perfect accuracy and precision guaranteed
Advanced Detector Design enhances the accuracy and stability of test results
Instrument Software provides high precision data with 10Khz data acquisition time.

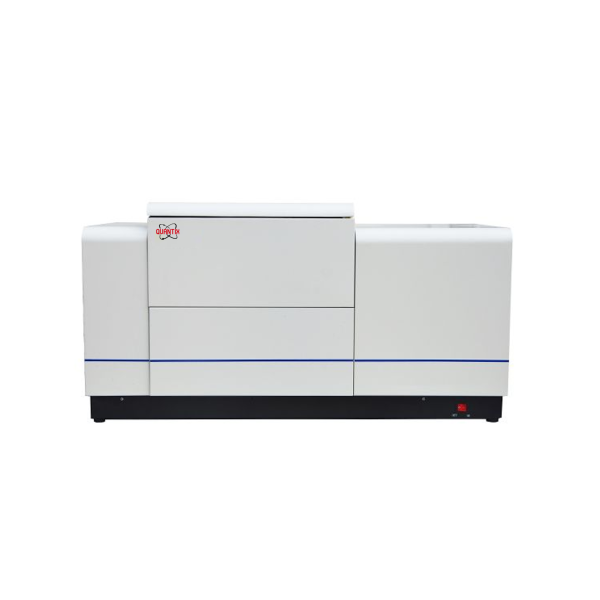

Model | QXPA-S435E | |
Measurment Standard | ISO 13320-1:2009,GB/T19007-2016,Q/0100JWN001-2013 | |
Compliance with 21 CFR Part 11 | ||
Measurment Principle | Laser diffraction principle | |
Analysis | Mie and Fraunhofer scattering | |
Detector Arrangement | Log-spaced array, test angle from 0.015 degree to 145 degree | |
Measurment Range | Wet:0.01μm-2000 μm Dry: 0.1μm-2000μm | |
Silicon Photodetectors | Wet:127PCS Dry:100 PCS | |
Accuracy error | Wet<1% Dry<1% (CRM D50) | |
Repeatability error | Wet<1% Dry<1% (CRM D50) | |
Light sourceS | Dual lens, He-Ne laser P>3.0 MW (λ= 632.8nm) | |
Auxiliary green semiconductor laser (λ= 405 nm) P>2.0MW , | ||
Laser Safety | Class 1 | |
Wet dispersion | Ultrasonic | Frequency:40KHz Power:60W, Time: ≥1S |
Stir | Revolutions Speed: 0-3000RPM (Adjustable) | |
Circulate | Rated Flow:30L/min Rated Power:70W | |
Sample tank | Volume:1000mL | |
Micro- | Volume: 10mL ( Available) | |
Sample cuvette | ||
Dry dispersion | Dry-turbulence dispersion patent, normal shock wave shear technique | |
Feeding Speed | Adjustable (Variable speed knob) | |
Operation Mode | Full automatic / manual control, freely choose | |
Dispersion medium | Compressed Air, pressure: 0 to 6 bar | |
Optical bench alignment system | Full automatic, precision is up to 0.2um | |
Measurment Time | Wet: <2 Min Dry : <1min Typical measuring time<10S | |
Outer dimension(L*W*H) | 104×44×54cm | |
Net Weight | 70Kg |
