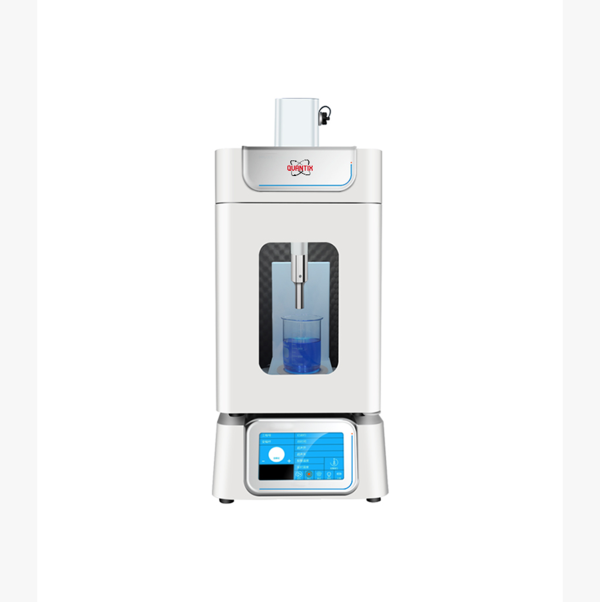

Intelligent Ultrasonic Homogenizer (QXM-HU352)

Intelligent Ultrasonic Homogenizer (QXM-HU352)

The intelligent ultrasonic homogenizer supply network control, and remote printing conforms to the modern humanized design concept. In order to improve the safety of the biological environment, this product adds ultraviolet sterilization function to reduce the risk of personnel infection and sample cross-contamination. It can be used for the processing of samples of different volumes (corresponding models and probes can be selected according to different volumes), and is widely used in the cracking, emulsification, homogenization and crushing of samples in the fields of life sciences, pharmaceuticals and material chemistry.
Intelligent Ultrasonic Homogenizer (QXM-HU352)
Features
  • High security, with over-temperature, overload and time alarm functions, with user password protection, UV sterilization and door lock functions
  • Intuitive process, external transparent front door, built-in LED light
  • Can only store, can create up to 20 groups of operating procedures
  • Stack up and down design, save laboratory space
  • Flexible parameters, ultrasonic time, continuously adjustable power, good stability
  • Remote control, the host computer is equipped with a remote monitoring communication interface, which can realize the functions of network control and remote printing
  • The electric lift seat adjusts the position of the base through the up and down buttons, eliminating the tedious manual operation
  • Wide processing range, different types of instruments can be adapted to the needs of different customers
Technical Specification
Model QXM-HU352 QXM-HU353 QXM-HU354 QXM-HU355
Power 6.5~650W adjustable 10~1000W adjustable 12~1200W adjustable 18~1800W adjustable
Mixing capacity 0.1-500ml 0.1-700ml 1-1000ml 1-1200ml
Display 7inch Touch Screen 7inch Touch Screen 7inch Touch Screen 7inch Touch Screen
 Single ultrasonic time 0.1-99.9S 0.1-99.9S 0.1-99.9S 0.1-99.9S
Ultrasonic Gap 0.1-99.9S 0.1-99.9S 0.1-99.9S 0.1-99.9S
Total working time 1min-99H59M59S 1min-99H59M59S 1min-99H59M59S 1min-99H59M59S
Frequency 20-25Khz 20-25Khz 20-25Khz 20-25Khz
Temperature Control 0~100℃ 0~100℃ 0~100℃ 0~100℃
Alarm function Temperature,time,overload,no load, Over temperature Temperature,time,overload,no load, Over temperature Temperature,time,overload,no load, Over temperature Temperature,time,overload,no load, Over temperature
Optional Horns Φ2/3/6/8/10/12mm Φ2/3/6/8/10/12/15mm Φ3/6/8/10/15/22/25mm Φ3/6/8/10/15/20/22/25/28mm
Standard Horn Φ6mm(do 10~100ml capacity) Φ6mm(do 10~100ml capacity) Φ20mm(do 10~100ml capacity) Φ22mm(do 10~100ml capacity)
Data Storage 20sets 20sets 20sets 20sets
Voltage 220V/110V/50Hz/60Hz 220V/110V/50Hz/60Hz 220V/110V/50Hz/60Hz 220V/110V/50Hz/60Hz
Ultrasonic Host Dimension 427*340*168mm 427*340*168mm 427*340*168mm 427*340*168mm
Ultrasonic host weight 11kg 12kg 16kg 16kg
(Ultrasonic horn +Transducer ) Weight 2kg 2kg 2.5kg 2.5kg
Ultrasonic host Packing Dimension 500*400*320mm 500*400*320mm 500*400*320mm 500*400*320mm
Soundproof box Packing dimension 385*385*585mm 385*385*585mm 385*385*585mm 385*385*585mm
Soundproof box Weight 13kg 13kg 13kg 13kg
Working voice alarm &Fault indication Yes Yes Yes Yes
Ultrasonic  Time pulse width data Yes Yes Yes Yes
Ultrasonic Power simulation data Yes Yes Yes Yes
Password protection function Yes Yes Yes Yes
Ultrasonic host material Aluminum alloy+ABS Aluminum alloy+ABS Aluminum alloy+ABS Aluminum alloy+ABS
Soundproof box material Anti Corrosive +ABS Anti Corrosive +ABS Anti Corrosive +ABS Anti Corrosive +ABS
Soundproof box  Chamber inside lighting Yes Yes Yes Yes
Soundproof box Sterilization Yes Yes Yes Yes
Remote electric lifting Yes Yes Yes Yes
