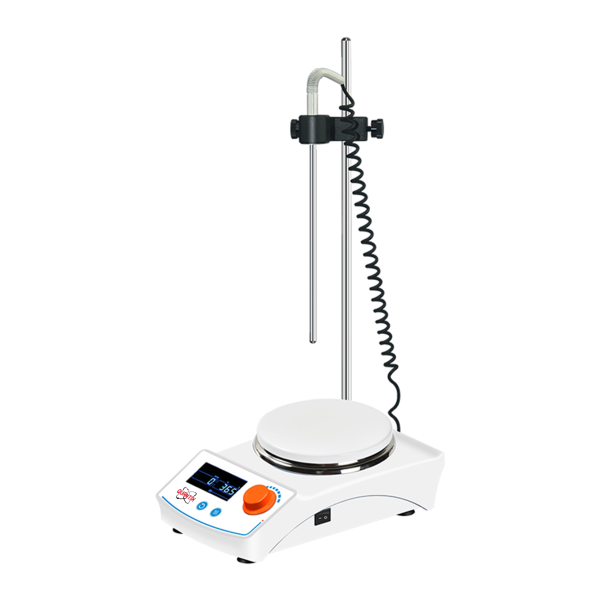

Hotplate Magnetic Stirrer (QXM-HS367)

Hotplate Magnetic Stirrer (QXM-HS367)

The heated magnetic stirrer QXM-HS367 is specially developed and designed for the application field with higher requirements on processing capacity, temperature and power. The upgraded heated magnetic stirrer has better performance, stronger function and wider application range. It is suitable for stirring and heating at the same time, and the viscosity is not very large liquid or solid-liquid mixture.
Features

● Stainless steel ceramic working surface is resistant to chemical corrosion and pollution-free;;
● Wide temperature control range, the highest temperature can reach 350℃;

●The external temperature sensor PT1000 can precisely control the temperature accuracy to ±0.2℃;

●The mica sheet is heated at high temperature, has excellent insulation, corrosiveness and thermal conductivity, and is heated more evenly;

●Brushless DC motor, low noise, low maintenance, stable operation and long service life;

●LCD liquid crystal display screen displays temperature, rotation speed and running time in real time, which is clearly visible;

●With time setting function, it can be set from 1 to 99h59min, which makes the experimental operation more convenient; it is affected by corrosion;

●The heating function is controlled separately, and when the heating is turned on, the button is highlighted, which is convenient for operation;

●Aluminum die-casting ceramic coating work plate has excellent wear resistance, corrosion resistance and high temperature oxidation resistance;

●The LCD liquid crystal display is equipped with a backlight design, which is convenient for the setting and monitoring of data during operation;

●Dual heating control loops, when one heating loop fails, it can still keep the temperature stable;

●The knob has the function of running lock and anti-misoperation to prevent accidental change of the running state and improve the safety of the experiment; it is damaged by corrosion;

● Pressed aluminum sealed thermal insulation shell can effectively prevent liquid and gas from entering the inside of the instrument and protect circuit components from corrosion.

Technical Specification
Model QXM-HS367
Max Capacity 20L
Whole machine power 600W
Output Power 15W
Power Supply(V/Hz) 220/50~60HZ
Noise Level(dB) ≤27
Adjust Mode Double knob
Display mode LCD
Operation mode Continuously/Time setting
Motor type DC brushless motor
Speed Range(rpm) 100-2000
Shell Material Outside the steel plate spray
Working plate material Stainless Steel Ceramic Coating
Heating mode Mica
Working plate diameter(mm) φ145
Temperature control RT-5~350℃
Sensor temperature control accuracy ±0.2
Temperature control accuracy ±1℃
Over temperature protection (℃) ≤420
External temperature sensor PT1000
Temperature setting accuracy ±0.1  °C
Timing range 0 – 99h59min
Heating Power 550W
Stirring bars range 20~80mm
Allowable ambient temperature 5~40
Allowable ambient humidity(%) 80
Instrument Size(mm) 165*280*105
Packing Size(mm) 425*390*200
NW(kg) 4.0
GW(kg) 5.4
