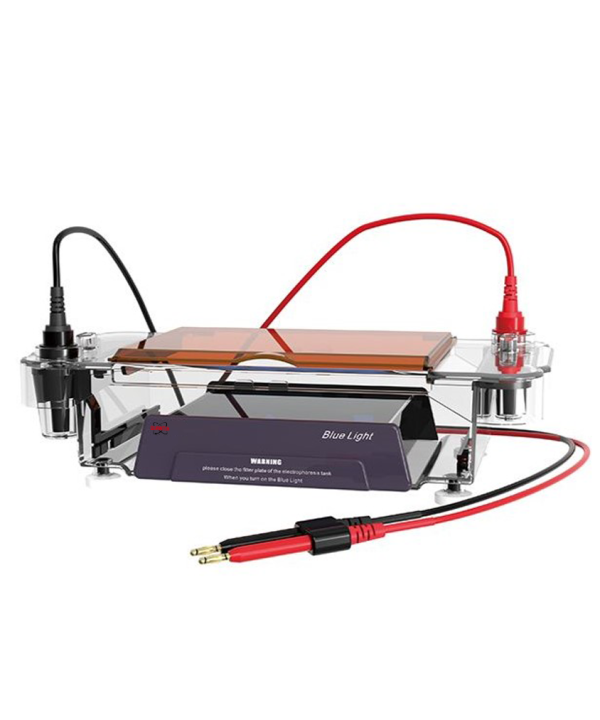

Horizontal Electrophoresis Tank (QTX-HET-500)

Horizontal Electrophoresis Tank (QTX-HET-500)

Description

QTX-HET-500 Electrophoresis cell adds an integrated blue light transmission device on the basis of QTX-HET-500.
Combined with blue light dye, the electrophoresis process can be monitored in real-time.
The blue light can be automatically turned off in 5 minutes to prevent long-term lighting from affecting the life of the LED lamp bead.

Horizontal Electrophoresis Tank (QTX-HET-500)

Features

Gel area: 130*150mm/130*200mm
Sample throughput: 14、18、26 teeth
Wavelength of blue light: 470nm
Buffer volume: 800mL

Technical Specification

Model	QTX-HET-500
Wavelength of Blue Light	470nm
External Dimension（LWH）	365150130mm
Gel Area (W*L)	130200mm, 130150mm
Sampling Comb	1.0mm 14, 18, 26 teeth;
Sampling Comb	1.5mm 18 teeth
Buffer Volume	800mL
