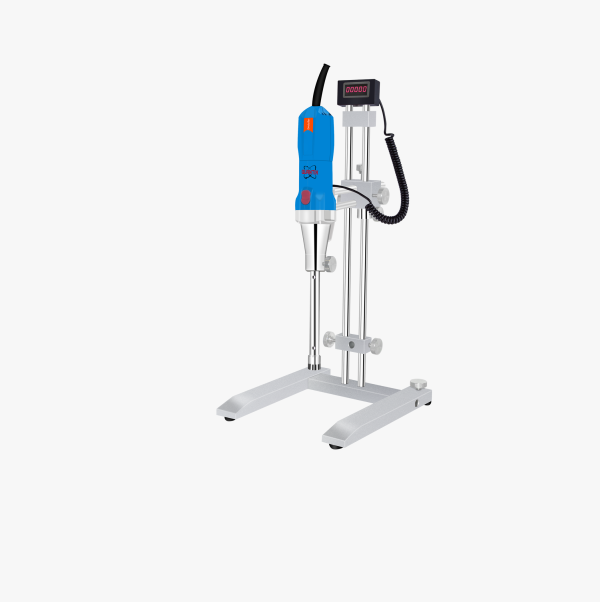

High Shear Homogenizer (QXM-HS734)

High Shear Homogenizer (QXM-HS734)

● The digital display high shear homogenizer emulsifying machine integrates dexterity and convenience. It can realize vacuum operation or hand-held operation, and can easily meet various experimental requirements of high dispersion, emulsification and homogenization; ● The rotating speed can reach 28000rpm, and more than 20 kinds of working heads are available. The high-speed rotating rotor is combined with the precise working chamber of the stator. Relying on the high linear speed, it produces strong hydraulic shearing, centrifugal extrusion, and high-speed cutting and collision, so that the The material is fully dispersed, emulsified, homogenized, pulverized and mixed, and finally a stable high-quality product is obtained; ● Mainly used in pharmaceutical, biochemical, food, nanomaterials, coatings, adhesives, daily chemicals, printing and dyeing, petrochemicals, papermaking chemistry, polyurethane, inorganic salts, asphalt, silicone, pesticides, water treatment, heavy oil emulsification and other industries .
Features

● Selection of high-quality motor, stable operation, lower noise, long-term operation, safe and reliable design;

● All parts of the working head contacting materials are made of high-quality stainless steel, with good corrosion resistance;

● The working head is connected with the drive motor by a coupling, which is easy and flexible to disassemble and assemble;

● The speed regulating machine base adopts stepless speed regulator, which is convenient for speed regulation and stable in operation.

Technical Specification
Power 500W
Power supply 220V/50/60Hz
Range of rotation 10000-31000rpm
Speed display mode Digital Display
Speed mode Stepless speed regulation
Processing capacity 0.2ml-7000ml(H2O)
Standard working head 25G
Contact material SUS316L
Immersion material shaft sleeve material PTFE
Speed deviation 1%
Maximum viscosity 5000CP
Process type Batch processing
Allowable ambient temperature 5-40 degrees
Relative humidity 80%
Set Weight 9KG
              Set packing dimension                470×330×200mm
                  Host dimension                         275×φ65mm
                 Host Net weight                             4kg
