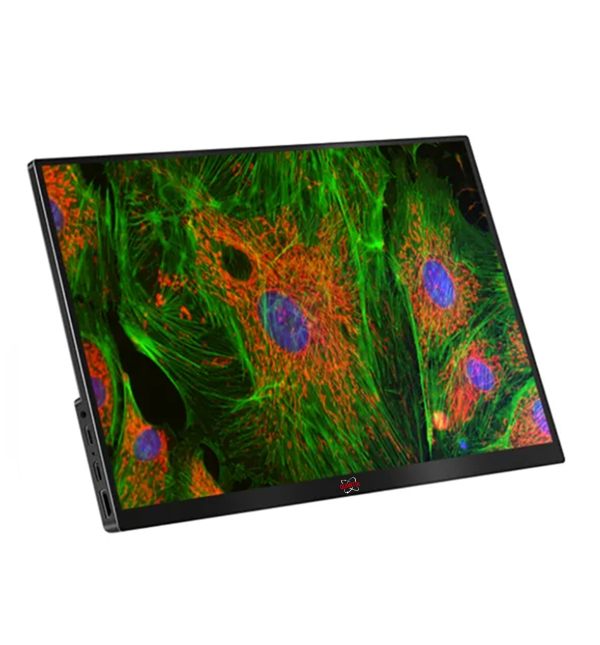

HDMI Displayer (LCD screen) QXM-DMI110 Series

HDMI Displayer (LCD screen) QXM-DMI110 Series

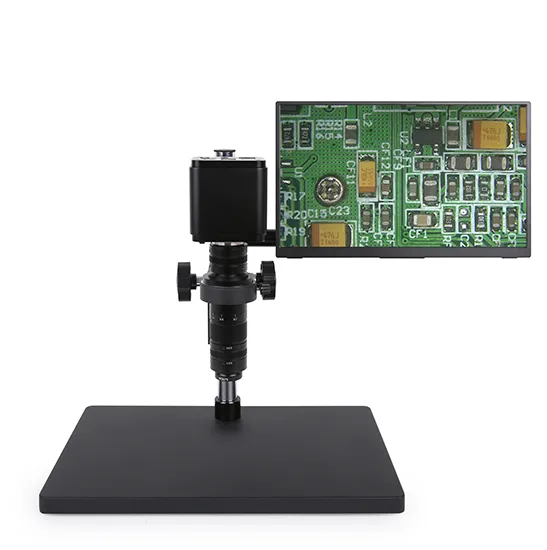

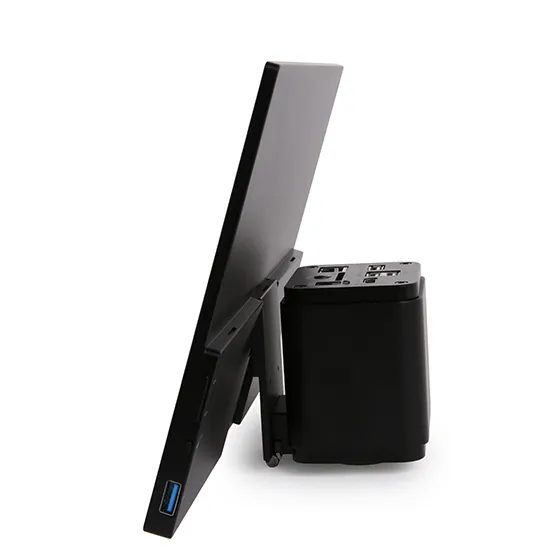

HDMI Displayer (LCD screen) is born with QXM-DMI110 and QXM-DMI110BT series HDMI camera and can be used for 4K resolution display screen. HDMI Displayer is a regular mouse screen that can be paired with an HDMI camera to create an integrated imaging and display system, which is flexible and intuitive. At the same time, the high-quality display characteristics of QXM-DMI110 can fully utilize the features of an HDMI camera. It is a touch screen that can be easily operated by connecting to an HDMI camera that supports touch functionality.
HDMI Displayer (LCD screen) QXM-DMI110 Series
HDMI Displayer (LCD screen) QXM-DMI110 Series - Image 2
HDMI Displayer (LCD screen) QXM-DMI110 Series - Image 3
HDMI Displayer (LCD screen) QXM-DMI110 Series - Image 4
Features

The basic characteristics of QXM-DMI110 B/QXM-DMI110 BT are as follows:

  • True 4K HDMI displayer, meet the needs of most applications
  • 13.3 inch active area
  • IPS LCD panel, 178° wide viewing angle
  • HDR dynamic image enhancement
  • 400cd/m2display brightness, high contrast ratio up to 1000:1
  • 4mm narrow frame design on three sides, with 81.5% of the screen area, great visual experience
  • No delay is felt with 3ms response, and dynamic definition is optimized to keep the picture stable and clear without residual shadow
  • Standard HDMI interface
  • Connect computer to realize screen projection, splitting and expansion
  • Integrated invisible folding support, easy viewing angle adjustment
  • 12.Easy to connect with HDMI camera
Technical Specification
Order Code Active Area (Inch) Video Fomat Resolution Contrast Color Gamut View Angle Touch Function
QXM-DMI110B 13.3 HDMI 4K 100000:1 100% DCI-P3 IPS Full View(178°) NA
QXM-DMI110BT 13.3 HDMI 4K 1000:1 100% SRGB IPS Full View(178°) Available



Basic Performance
QXM-DMI110B QXM-DMI110BT
Panel Type Common Touch, 2 means square
LCD Panel AM-OLED IPS LCD Screen
Input Video Format HDMI
Native Resolution 3840 x 2160
Display Type 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD
Typical Contrast Ratio 100000:1 1000:1
Colors 10.7 billion 16.7 million
Viewing Angle(L/R/U/D) IPS Full View (178°)
Active Display Area 293.76mm(W) × 165.24mm(H)
Pixel Pitch 0.0765×0.0765 (H×V) (332PPI)
Refresh Rate 60Hz
Brightness 400cd/m2
Backlight OLED self-luminous LED Backlight, 50000 hours
Outline Parameter
Color Black

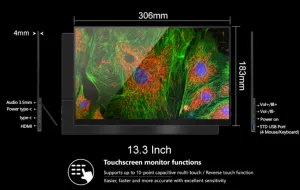

Dimension 306(L)*183(H)*8(T) mm
Weight 560g
Operating Environment
Operating Temperature -15 Degree~55 Degree
Humidity Non Condensing Operating:10%-90%, Storage: 5%-90%
Synchronization Range 30-80 KHz Horizontal, 55-75 Hz Vertical
Power Supply AC110V-220V /DC5~12V(1A ) (Type C)
Power Consumption Max 15W Max 12W
