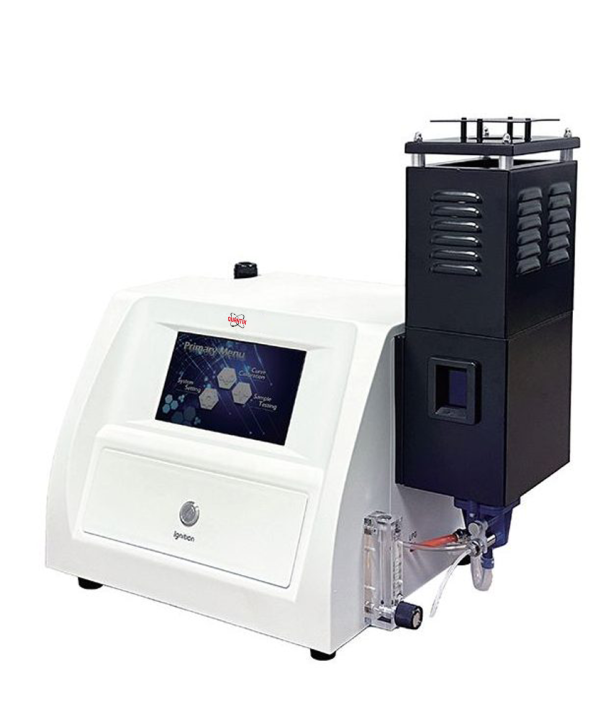

Flame Photometer (QXF-P Series)

Push-button ignition, easy to operate.
7- inch color touch screen
20 sets of standard curves and 20 sets of test data can be stored.Use LPG as gas.
Direct concentration display (Don’t cover QXF-P455)
Automatic calculation of correlation coefficient (Don’t cover QXF-P455)
Pre-selection of flame sizes
Flameout protection device
Measuring range changing
Concentration units selectable
Multilingual user interface
Air compressor provide

Features

Technical Specification

Model		QXF-P450	QXF-P451	QXF-P452	QXF-P453	QXF-P454	QXF-P455
Operation mode		7- inch color touch- screen
Display value		Concentration value					Optical power
Data range		0.000～999.9				000.0～999.9	0000～9999
Testable		K, Na, Li, Ca, Ba	K, Na, Li, Ca	K, Na, Ca	K, Na, Li	K, Na	K, Na
Channel Qty.		5	4	3		2
Range ppm	K	0-100
	Na	0-160
	Li	0-100		○	0-100	○	○
	Ca	0-1000		0-1000	○	○	○
	Ba	0-3000	○	○	○	○	○
LOD ppm	K	0.01
	Na	0.01
	Li	0.1		○	0.1	○	○
	Ca	2		2	○	○	○
	Ba	6	○	○	○	○	○
Linear error	K	0.195
	Na	0.69
	Li	0.15		○	0.15	○	○
	Ca	3		3	○	○	○
	Ba	9	○	○	○	○	○
Response time		<8s
Sample uptake		<6ml/min
Stability		< 3% drift over15s when continuously aspirating.
Reproducibility		< 3% coefficient of variation for 7 consecutive samples
Curve Graph		Display				○	○
Printer		Optional build-in thermal printer					○
COM		USB					○
Fuel		LPG
Power		AC220V±22V 50Hz±1Hz,250W
Packing size		570mm×530mm×400mm 0.12M³ 18kg
