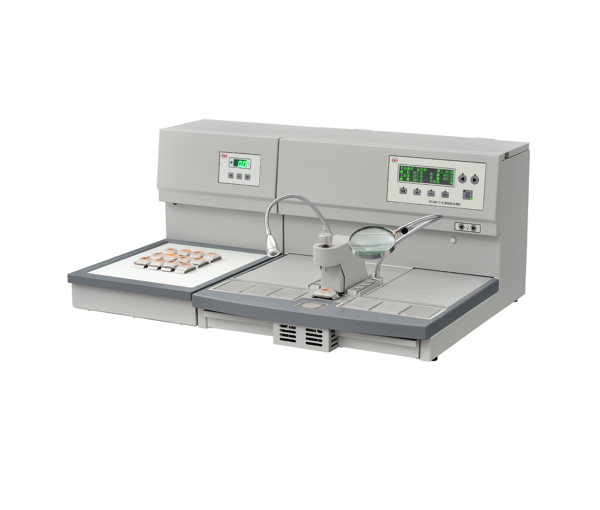

QXE-X367
Embedding center:
Paraffin Chamber Capacity: ≥6 liters
Temperature Ranges: RT – 85℃:
Temperature Control Precision: ±1%
Paraffin Flow Control: Paraffin flow control via finger touch plate and optional foot pedal
Fully programmable ON/OFF control allows automatic system start and stop anytime weekly
Dimensions of Paraffin Chamber : 494×131×92mm(W x D x H)
Dimensions of Thermal Chamber (each of two) : 240×160×55 mm(W x D x H)
Working area of Embedding Module: 540mm×93mm
Dimensions of small cold plate: 60×50mm
Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power: 1000W
Dimensions: 675×575×393mm(W x D x H)
Net weight: 39kg
Cooling system:
Temperature Ranges of Cryo Module: 0 to -20℃
Temperature setting of Cryo Module: the optimal working temperature is approximately -10℃, and the temperature is under delay protection
Dimensions of Cryo Module: 315×380 mm
Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power: 300W
Dimensions: 710×350×390mm (W×D×H)
Net weight: 25kg
