Digital Microscope (QXM-IGI37 Series )

Introduction

With 1.3MP colorful digital camera, competitive price and easy to operate features, This binocular digital microscopes are widely used in educational, academic, agricultural and study field. They are connected to a computer via a USB cable. The software is powerful and easy to operate, it can preview, take photos, videos and do measurement.

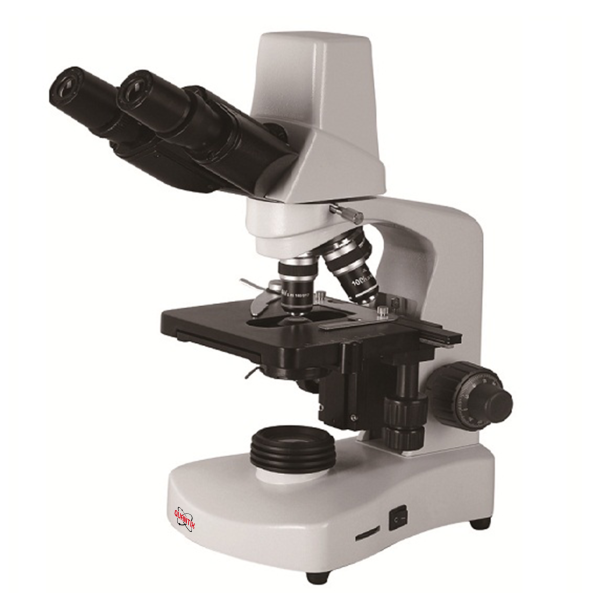

Digital Microscope (QXM-IGI37 Series ) - Image 2

Application

These microscopes are ideally suited for school biological education and medical analyses area. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department.

Features

Built-in 1.3 Mega Pixel CMOS camera, vivid images and real color reproduction.
High definition images and videos, high frame rate.
Professional image analyze software supports Windows Vista / Win 7/8/10 32&64bit Operation System.
Support Multi-language (Arabic, Chinese, English, French, Germen, Japanese, Polish and etc.).
Compact and flexible, ideally suited for desktop, laboratory worktable.

Technical Specification

Item	Specification			QXM-IGI37MD	QXM-IGI37BD

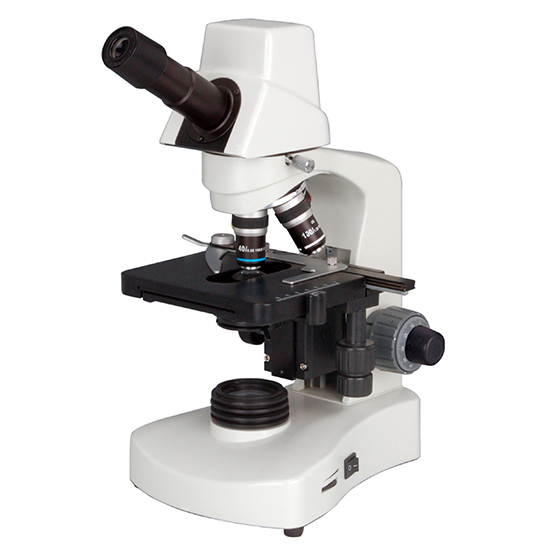

Viewing Head	Monocular Head with digital camera, Inclined at 30°, 360° Rotatable			●
	Seidentopf Binocular Head with digital camera, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm				●
	Camera System	Resolution	1280×1024 (1.3Mega Pixel)	●	●
		Output Mode	USB2.0	●	●
		Operation System	Window 2000/ XP/ Vista/ Win 7	●	●
		Software	ScopeImage 9.0	●	●
		Range of Viewing Field	90%	●	●
Eyepiece	WF10×/18mm			●	●
Eyepiece	WF16×/11mm, WF25×/8mm			○	○
Nosepiece	Backward Quadruple Nosepiece			●	●
Objective	Achromatic Objective 4×, 10×, 40×, 100×			●	●
Objective	Achromatic Objective 20×, 60×			○	○
Stage	Double Layers Mechanical Stage 132×142mm/ 75×40mm			●	●
Condenser	Abbe NA1.20 with Iris Diaphragm & Fliter			●	●
Focusing	Coaxial Coarse & Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 32.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm			●	●
Illumination	1W S-LED illumination, Brightness Adjustable			●	●
Illumination	Halogen Lamp 6V/ 20W, Brightness Adjustable			○	○
Optional accessories	Phase Contrast Kit			○	○
	Dark-Field Attachment			○	○
	Polarization Attachment			○	○
	Rechargeable battery			○	○
Package	1pcs/carton, 39.5cm26.5cm50cm, 8kg			●	●

Note: ● Standard Accessories ○ Optional Accessories
