Digital Microscope Camera (QXM-AQC444)

Digital Microscope Camera (QXM-AQC444)

Digital Microscope Camera is a new generation tablet camera with latest technology. Equipped with international standard C-type interface, it can be conveniently thread on C-mount coupler and eyepiece adapter. It is compatible with the monocular, binocular, trinocular and any kind of microscopes, such as biological, stereo, video, polarizing, metallurgical microscopes or telescopes.

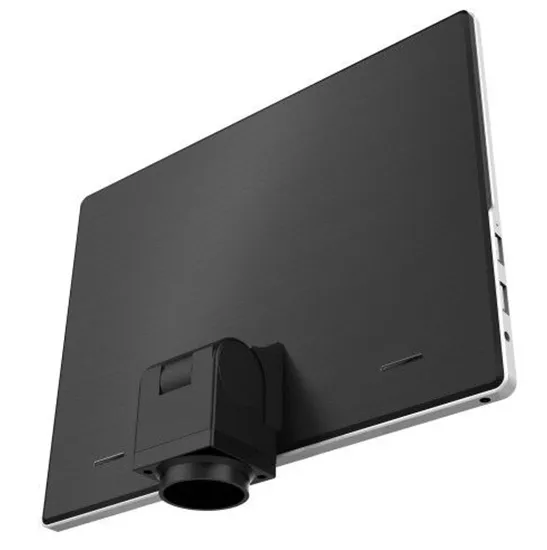

Digital Microscope Camera (QXM-AQC444)
Digital Microscope Camera (QXM-AQC444) - Image 2
Digital Microscope Camera (QXM-AQC444) - Image 3
Features
  • Complete Application Functions, Not Only Camera, Also Tablet PC!
  • High Resolution Image Sensor, Good Color Rendition and Definition, 1/2.5 ” CMOS Sensor, 2592*1936.
  • Captured Image Resolution is 4032*3024 (Max, by interpolation).
  • 9.7inch 2048*1536 HD Color Retinal LCD, Can be Operated by USB Keyboard and Mouse.
  • Android 5.1 Operating System.
  • RK3288 Quad Core 1.8Hz CPU.
  • External 32G C10 High-speed TF Memory Card.
  • Wi-Fi and Bluetooth Ready.
  • Build-in Microscopy Software for Capture/Record Images and Measurement.
  • Standard C-mount Interface.
Technical Specification
Tablet Specification (QXM-AQC444)
Hardware CPU RK3288 Quad Core 1.8Hz
Display 9.7inches 2048*1536 Color LCD, 5points Capacitance Touch Screen
Storage RAM 2GB DDR3
ROM 8GB
Support External TF Memory Card, Maximum Capacity Up to 32GB
Camera Frame Rate: 30pfs(Max)
Housing

Abs+ PC Plastic Housing+ Aluminum Back Case, Metal Stand

 Housing Abs+ Metal Housing, Metal Stand
Network WI-FI
Bluetooth
I/O USB/Mini-USB(OTG), Support USB Keyboard and Mouse
TF Memory Card Slot
DC12V 2A Power
Built-in Microphone
On/Off Button
HDMI Output
Software Operating System Android 5.1
Banding Software Build-in Microscopy Software



Build-in Camera Specification
Sensor Size 1/2.5-inch (4:3),
5.70mm(H) *4.28mm(V)
7.13mm(diagonal)
Active Pixels 2592H*1944
Pixel Size 2.2um *2.2um
Captured Image Resolution 4032*3024 (Max, by interpolation)
Preview Frame Rate 30fps @1024*768; 15fps@2048*1536/1600*1200
Video Resolution 1024*768
Dynamic Range 66.5dB
SNR 40.5dB
A/D Converter 12-bit, On-chip
Sensitivity 0.53V/lux-sec (550nm)
Shutter Electronic Rolling Shutter (ERS)
White Balance Auto/Manual
Exposure Model Auto/Manual
Parameter Adjustment Brightness/ Contrast/ Saturation/ Sharpness /Gamma Adjustment
Flip and Mirror Functions Rotate the Image Horizontally or Vertically

Note: ● Standard Accessories ○ Optional Accessories
