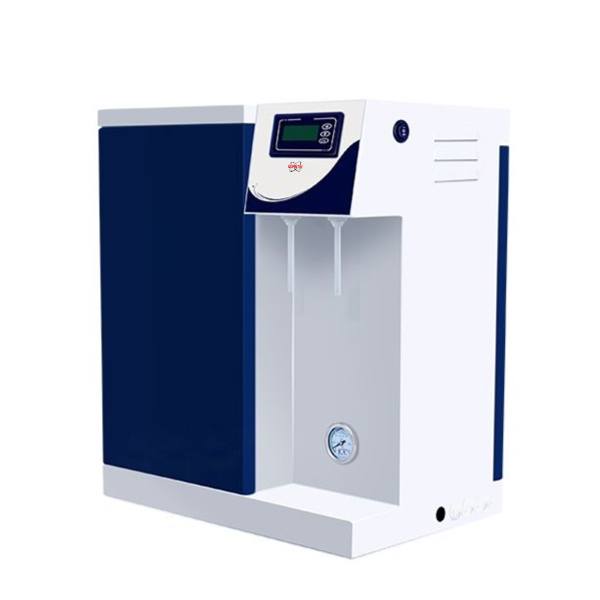

Deionized Water Purifier (QXT-DWP Series)

Description

1. Applicable to various water quality, the case is with powder coating. 2. The filter element adopts open mold injection technology and inside the machine 3. Korean quick-insert filter column is easy to replace and maintain. 4. The electrical appliance and waterways are completely separated to avoid circuit failure caused by moisture and water leakage. 5. Online water quality monitoring system, immediately measure the output water quality. 6. Automatic RO membrane anti-scaling flushing program, automatic stop when tap water break, automatic water breaking when machine stop, storage tank automatically fill water, automatic stopping when water is full. 7. NSF certified pipeline has function of upgrading water quality and quantity. 8. Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere. 9. Double electric water intakes, two kinds water quality, ready to use. Pressure online monitoring. 10. Open door at front and back, this make filters replacement easy&convenient, the replacement can be easily completed without using any tools. Double water intakes: pure water and deionized water

Deionized Water Purifier (QXT-DWP Series)

Features

Capacity: 10 – 30L/H
Resistivity(25°C):10-16MΩ.cm
Salt rejection 95-99% (with new RO membrane)
Conductance:<0.1us/cm
TDS (RO Water): <10ppm
2 water outlets: RO water, deionized water

Application:

Preposition of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical & biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt spray test chamber. It can completely replace the traditional single/double/triple distilled water machine.

Technical Specification

Model	QXT-DWP10	QXT-DWP20	QXT-DWP30
Feed water request	Tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C
Capacity	10L/H	20L/H	30L/H
Flow rate	1.5-2L/min ( with pressure barrel)
Output water quality	RO Pure water: desalination rate as high as 95-99%，TDS<10ppm
Output water quality	Deionized water: resistivity 10-16MΩ.cm@25°C, conductivity: ≦0.1 μs/cm, ammonia: 0.3μg/ml, nitrate: 0.06 μg/ml	Deionized water: resistivity 10-16MΩ.cm@25°C, conductivity: ≦0.1 μs/cm, ammonia: 0.3μg/ml, nitrate: 0.06 μg/ml
Power supply	220V/50Hz； 48W
Dimension（mm）	WDH：412750cm		WDH: 412750
Package Dimension (mm)	WDH：645670cm		WDH: 640560690
Standard configuration	Machine (including 1 set of consumable filters) +External 12L pressure tank + accessory package	Machine (including 1 set of consumable filters) +External 12L pressure tank + accessory package	Machine (including 1 set of consumable filters) +External 12L pressure tank + accessory package
