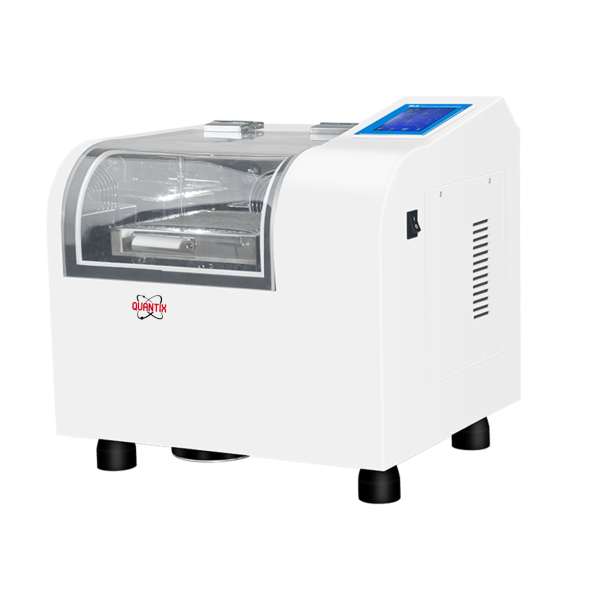

Constant Temperature Air Bath Cooling Type Shaker (QXM-BC324)

Constant Temperature Air Bath Cooling Type Shaker (QXM-BC324)

QXM-BC324 air bath constant temperature shaker, also known as constant temperature shaker, is mainly used in scientific research departments such as universities and colleges, medical treatment, petrochemical industry, health epidemic prevention, environmental monitoring, etc. for the oscillation culture of various liquid and solid compounds such as biological, biochemical, cellular, bacterial strains, etc. The experimental samples with higher requirements for temperature and oscillation frequency have stronger processing effect.
Features

● Integrating thermostatic incubator and oscillator in one, saving space and occupying small area, with more functions and less investment;

● Silent design of the whole machine, the outer box is made of cold-rolled steel plate electrostatic spraying box, with strong anti-corrosion ability;

● Tilting humanized control panel, large backlit LCD screen, with good visual effect;

● Large viewing angle observation window with clear working status;

● 304 electropolished mirror stainless steel inner liner;

The tray and fixture are made of stainless steel, which is corrosion resistant and easy to disassemble and clean;

● 50mm thick insulation layer, good insulation effect;

DC brushless motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance-free.

● Three-dimensional integrated partial tricycle drive, smooth, stable, durable and reliable operation;

● The compressor adopts automatic control, the temperature control range is not affected by room temperature, 4~60℃ can be controlled arbitrarily, and the compressor can automate frost.

Technical Specification
Model QXM-BC324
Display Mode 5 inch touch screen display
Constant Value / Programmable Mode Switchable
Forward / Reverse Mode Switchable
Timing Range 0~9999 (min/hour can be exchanged)
Temperature Control Range RT+5~60℃
Temperature Resolution 0.1℃
Constant Temperature Fluctuation ±0.5℃
Temperature Uniformity ±0.5℃ (37℃)
Shaking Mode Orbital shaking
Shaking Amplitude Φ26
Rotation Frequency 30–300rpm
Speed Accuracy ±1rpm
Working Environment Temperature 5℃~40℃
Default Factory Standard Configuration Spring clip
Maximum Capacity 50ml × 12pcs, 100ml × 10pcs, or 250ml × 6pcs
Trays Qty 1pcs
Tray Size 295×245mm
Inner Dimension (W×D×H) mm 330×285×220mm
Height of Rocking Plate from the Top About 160mm
Volume 20L
Power Supply AC220V 50HZ
Cooling Mode Automatic
Compressor Defrost Mode Automatic
Heating Power 350W
Total Power 360W
Net Weight (NW) 42KG
Gross Weight (GW) 47KG
