Biological Microscope (QXB-ROS39 Series)

Introduction

These biological microscopes are economical microscopes with basic features for educational applications in elementary and middle school. With the high quality material and optics, the microscopes can ensure you get high definition images. They are perfect for individual or classroom application. An incident illumination is available for non-transparent specimens.

Biological Microscope (QXB-ROS39 Series)

Biological Microscope (QXB-ROS39 Series) - Image 2

Applications

This series biological microscopes can be used for educational applications in elementary and middle schools. They also can be used as hobby for biological applications and small items identification.

Features

Monocular head, 360° Rotatable, users can view from any angles.
Maximum magnification can be up to 2500×with optional eyepiece and objectives.
Battery compartment comes with the microscope, 3pcs AA battery can be used as the power supply, easy for out door work.

Technical Specification

Item	Specification	QXB-ROS39M	QXB-ROS39B

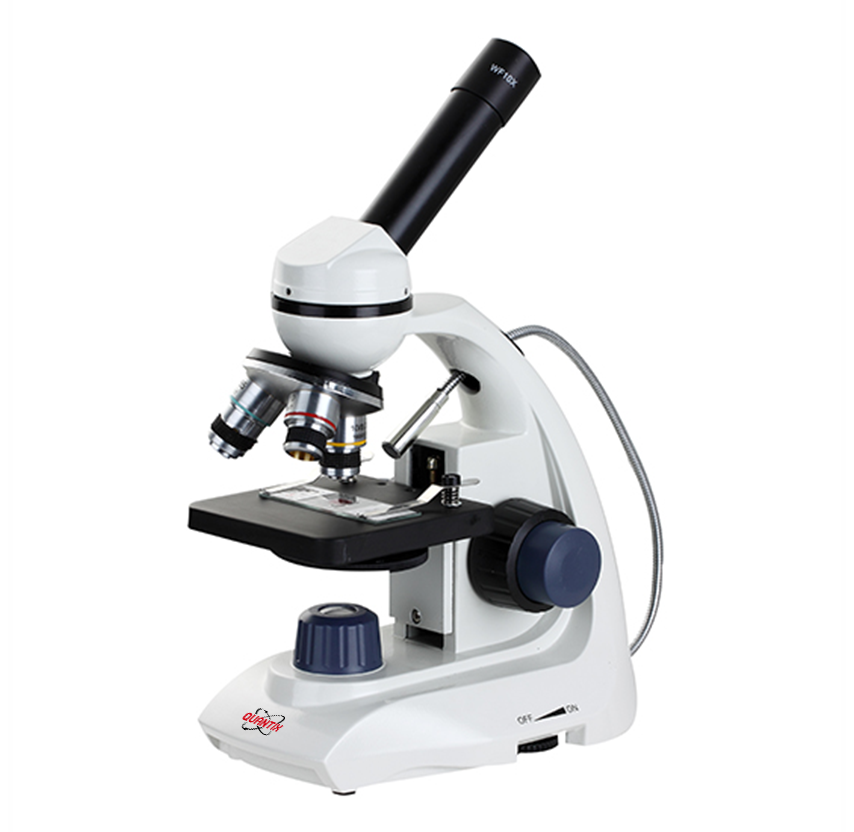

Viewing Head	Monocular viewing head, Inclined at 45°, 360° Rotatable	●

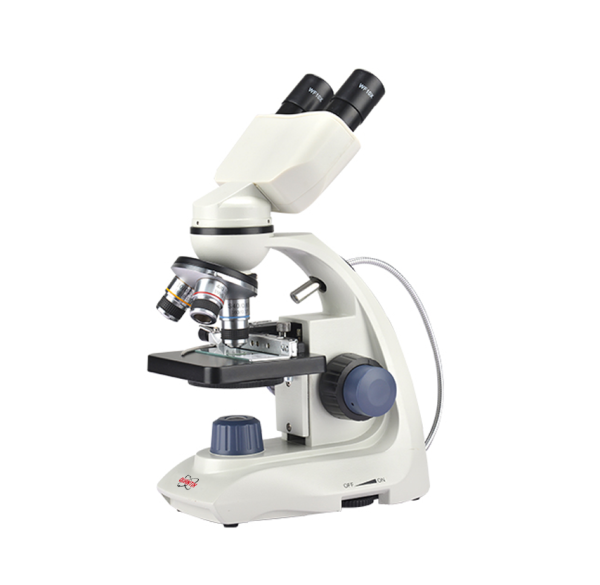

Viewing Head	Binocular viewing head, Inclined at 45°, 360° Rotatable, Interpupillary distance 54-77mm		●
Eyepiece	WF10×/16mm	●	●
	WF16×/11mm	○	○
	WF20×/9.5mm	○	○
	WF25×/6.5mm	●	●
Nosepiece	Triple Nosepiece	●	●
Objective	Achromatic Objective 4×(185)	●	●
	Achromatic Objective 10×(185)	●	●
	Achromatic Objective 40×(185)	●	●
	Achromatic Objective 60×(185) (The performance is not good, not recommend)	○	○
	Achromatic Objective 100×(185) (The performance is not good, not recommend)	○	○
Stage	Plain Stage with Slide Clips 95×95mm	●	●
Stage	Plain Stage with Mechanical ruler 95×95mm/60×30mm	○	○
Focusing	Coaxial Coarse and Fine Adjustment	●	●
Condenser	Single Lens NA 0.65 with Disc Diaphragm	●	●
Illumination	0.1W LED Illumination, Brightness Adjustable	●	●
Spare Parts	Dust Cover	●	●
Power Supply	AC100-220V power adapter, microscope input voltage DC5V	●	●
Power Supply	Battery compartment (can use 3pcs AA batteries as the power supply)	●	●
Package	Styrofoam & Carton, Dimension 28×19×40 cm, 3kg	●	●

Note: ● Standard Accessories ○ Optional Accessories
