1.Outstanding infinity color corrected optical system
Infinity color corrected system, professional plan achromatic objectives and cutting-edge microscopy technology, provide microscopic images with high resolution, high definition and high contrast.
2.22mm wide field
BS-2047B biological microscope can achieve a wide field of view range of 22mm under 10X eyepiece, which is more efficient and perfect for observation. Professional high eye point and wide field plan eyepiece can effectively correct edge distortion and chromatic aberration.
3.Rotatable viewing tube
Viewing tube with gemel group 360°rotation function , adjustable pupil distance, eye point height, for different height of the operator to provide a more flexible and comfortable experience.
4.Super large ceramic rackless stage
Double-layer mechanical stage, large arc shape, no angular design. The stage surface adopts ceramic paint process, high hardness, corrosion resistance. Damping-type double clips can be placed two slices at the same time, for inspection and comparative analysis.
5.Super endurance function
The body is equipped with a Type-C interface, which allows the microscope to use a portable battery as a power source. The microscope thus frees itself from dependence on power outlets, enabling easy use outdoors or in power outages. The body comes with a standard USB port, that allows the microscope to charge a phone or tablet.
Charge the microscope by the portable battery
Charge cell phones and tablets by the microscope
6.With ECO energy-saving working mode
Build-in ECO function, no operation for 30 minutes, the system will automatically turn off and into the standby mode. Users can automatically wake up the light source by touching the dimming knob.
7.User-friendly design increases comfort and safety
BS-2047B is equipped with a secure handle for moving. Fully concealed locking design eliminates all sharp edges. Low hand coarse and fine coaxial focus system is ergonomically designed to give the user maximum comfort. There is a storage device at the back of the body to ensure the cleanliness, saving storage space and improving portability.
8.Body power supply function
Built in 12V 1A transformer can directly charges the fluorescent illumination, easy to connect and safe to use.
| Item | Specification | QXB-ICR191B | QXB-ICR191T | |
| Optical System | Infinite Color Corrected Optical System | ● | ● | |

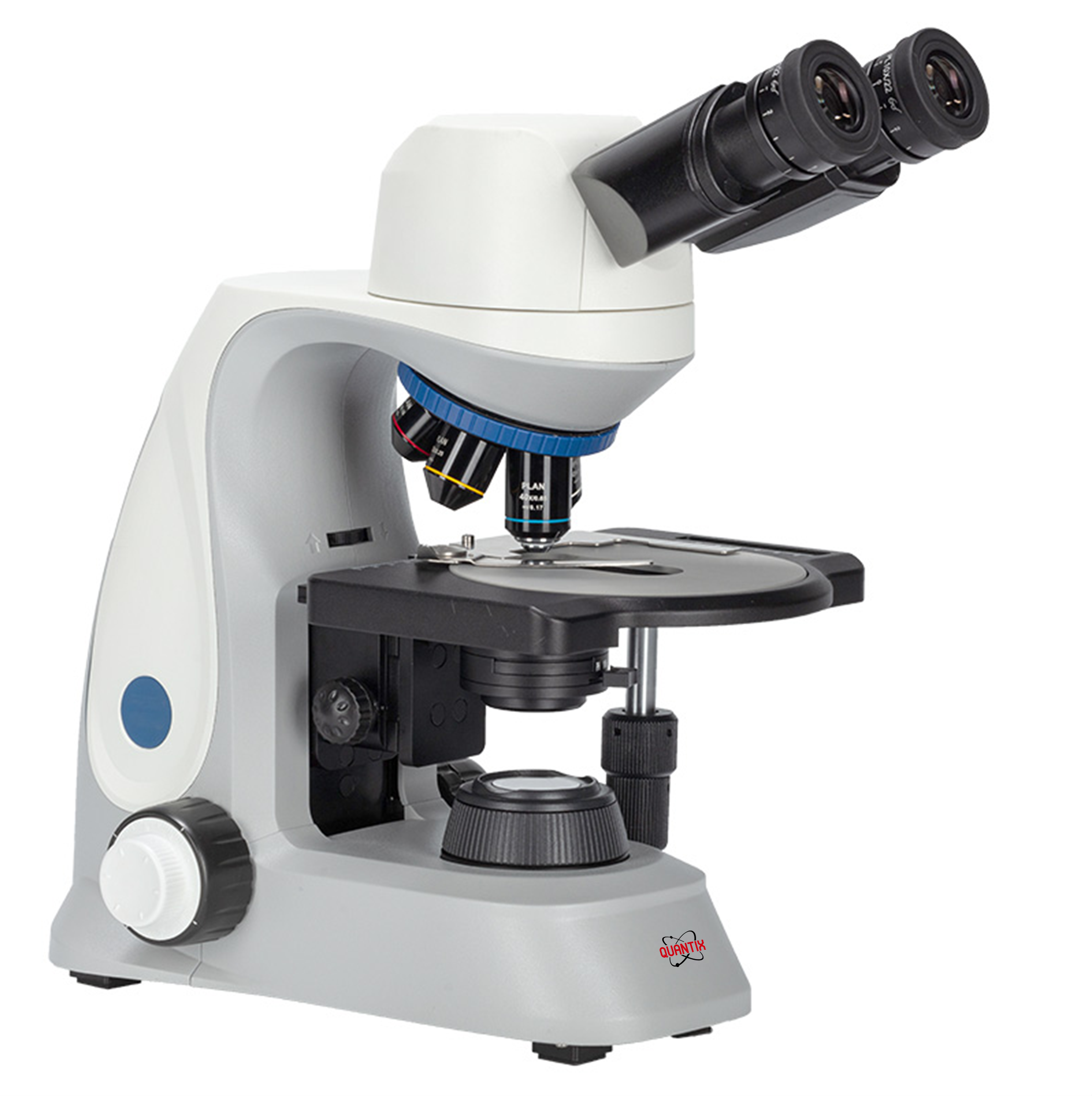

| Viewing Head | 30 degree gemel binocular tube, 360° rotatable, adjustable eye-point height from 375mm to 428.5mm, fixed eyepiece tube, interpupillary distance: 48-76mm | ● | ○ | |

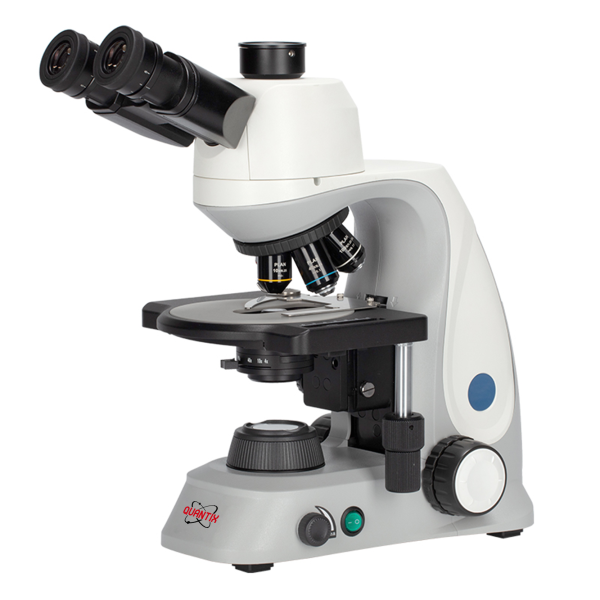

| 30 degree gemel trinocular tube, 360° rotatable, adjustable eye-point height from 375mm to 428.5mm, fixed eyepiece tube, interpupillary distance: 48-76mm, splitting ratio: 50:50 | ○ | ● | ||
| Eyepiece | High eye point wide field plan eyepiece PL10X/20mm, with adjustable diopter | ○ | ○ | |
| High eye point wide field plan eyepiece PL10X/20mm, with adjustable diopter and micrometer | ○ | ○ | ||
| High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter | ● | ● | ||
| High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter and micrometer | ○ | ○ | ||
| High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter, micrometer and grid plate | ○ | ○ | ||
| Objective | Infinity Plan Achromatic Objectives | 2×, NA=0.06, WD=5.00mm (should work with frosted filter) | ○ | ○ |
| 4×, NA=0.10, WD=15.00mm | ● | ● | ||
| 10×, NA=0.25, WD=10.80mm | ● | ● | ||
| 20×, NA=0.4, WD=1.50mm | ○ | ○ | ||
| 40×, NA=0.65, WD=0.80mm | ● | ● | ||
| 60×, NA=0.85, WD=0.30mm | ○ | ○ | ||
| 100×, NA=1.25, WD=0.21mm | ● | ● | ||
| Infinity Plan Phase Contrast Objective | 10×, NA=0.25, WD=10.80mm | ○ | ○ | |
| 20×, NA=0.40, WD=1.50mm | ○ | ○ | ||
| 40×, NA=0.65, WD=0.80mm | ○ | ○ | ||
| 100×, NA=1.25, WD=0.21mm | ○ | ○ | ||
| Infinity Plan Semi-Apochromatic Objective | 4x, NA=0.13, WD=16.4mm | ○ | ○ | |
| 10x, NA=0.3, WD=8.1mm | ○ | ○ | ||
| 20x, NA=0.5, WD=2.0mm | ○ | ○ | ||
| 40x, NA=0.75, WD=0.74mm | ○ | ○ | ||
| 100x, NA=1.28, WD=0.14mm | ○ | ○ | ||
| Nosepiece | Quintuple Nosepiece | ● | ● | |
| Stage | Double layers mechanical ceramic paint stage, 210mm*171mm, precision: 0.1mm (X-axis rackless). Clips for double sliders, moving range: 78mm*51mm. | ● | ● | |
| Condenser | N.A. 1.25 Koehler illuminator condenser (with slot for phase contrast and dark field accessories) with aperture diaphragm. | ● | ● | |
| Focusing | Low hand coarse and fine coaxial focus system, with elastic adjustment device and upper limit device. Coarse adjustment range is 27mm. Fine tuning accuracy is 2 μm. | ● | ● | |
| Transmitted Illumination | 100V -240V external transformer, 3W LED with continuous intensity control, cool color temperature from 4750K to 5500K. Type-C interface allows portable battery as a power source. With ECO function. | ● | ● | |
| 100V -240V external transformer, 3W LED with continuous intensity control, cool color temperature from 4750K to 5500K. Type-C interface allows portable battery as a power source. With ECO function. With contact type digital power supply device. | ○ | ○ | ||
| Microscope Body | For non-fluorescent microscope | ● | ● | |
| Dark Field Accessories | Dark Field Insert Plate (used for 4×-40× objectives) | ○ | ○ | |
| Centering Telescope | Centering Telescope Φ30mm (used with phase contrast plate and objective) | ○ | ○ | |
| Phase Contact Accessories | Phase Contrast Insert Plate (used for 10×, 40× phase contrast objectives) | ○ | ○ | |
| Phase Contrast Insert Plate (used for 20×, 100× phase contrast objectives) | ○ | ○ | ||
| C-mount Adapter | 0.35× C-mount adapter, adjustable | ○ | ○ | |
| 0.5× C-mount adapter, adjustable | ○ | ○ | ||
| 0.65× C-mount adapter, adjustable | ○ | ○ | ||
| 1× C-mount adapter, adjustable | ○ | ○ | ||
| Other Accessories
Other |
Frosted glass accessories (used with 2X Infinity Plan Achromatic Objectives) | ○ | ○ | |
| Micrometer | ○ | ○ | ||
| Internal hexagonal Spanner M4 | ● | ● | ||
Note: ● Standard Accessories ○ Optional Accessories
