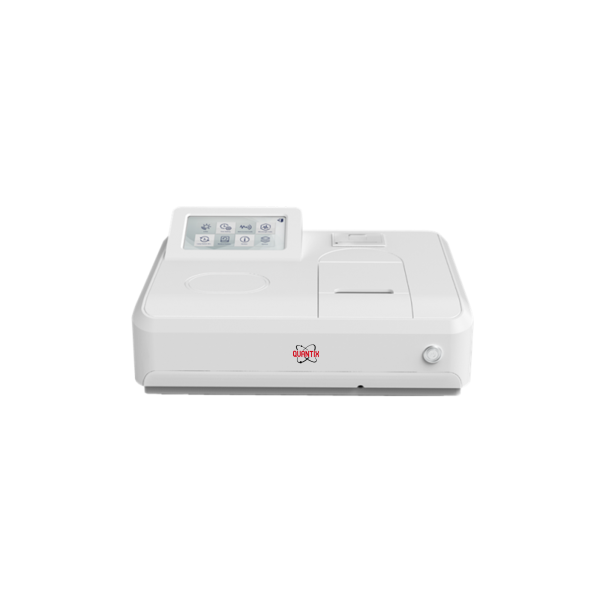

Benchtop Water Analyzer (QXTB-WA981)

Benchtop Water Analyzer (QXTB-WA981)

No blank calibration, automatic measurement, direct reading of concentration. With built-in standard curve. Users can setup curves according to different measurement requirements.
Features

The unique high-precision filter system makes the instrument more stable and accurate.

No blank calibration, automatic measurement, directs reading of concentration. With built-in standard curve. Users can setup curves according to different measurement requirements.

Support zero point and up to 7-point calibration. Support calibration restoring function to restore factory calibration data. Can store 5000 sets of test data.

Technical Specification

Type Benchtop

  • Display 7-inch touch screen
  • Accuracy ≤5%
  • Repeatability ≤5%
  • Optical Stability ≤0.001A/10min
  •  Built-in thermal printer can print current data and stored data.
  • Testing items Measuring Range Measurement Method
  •  COD 10-1000mg/L Rapid digestion spectrophotometry
  •  Ammonia Nitrogen 0.01-100mg/L Nessler’s reagent spectrophotometry
  •  Phosphorus, Total 0.01-15mg/L Ammonium molybdate spectrophotometry
  •  Nitrogen, Total 0-10mg/L Alkaline potassium persulfate digestion ultraviolet
  •  spectrophotometry
  •  Suspended Solids 0-100, 100-1000, 1000-4000mg/L Direct colorimetric method
  •  Chlorine, Free 0-15mg/L DPD spectrophotometry
  •  Chlorine, Total 0-30mg/L DPD spectrophotometry
  •  Chlorine Dioxide 0.05-30mg/L DPD spectrophotometry
  •  Air Formaldehyde 0.05-1.5mg/m3 Acetylacetone spectrophotometry
  •  Formaldehyde in Water 0.05-10mg/L Acetylacetone spectrophotometry
  •  Textile formaldehyde 0.2-30mg/kg Acetylacetone spectrophotometry
  •  Turbidity 0-1000 NTU 90° scattering method
  •  Chroma 0.001-500 PCU Platinum-Cobalt Colorimetry
  •  Beer Chroma 0-50 EBC Photoelectric colorimetry
  •  Heavy metal Hexavalent
  •  Chromium 0-10mg/L Spectrophotometry
  •  Nitrite 0-0.2mg/L Spectrophotometry
  •  Nitrite nitrogen 0.5-1.0mg/L Spectrophotometry
  •  nitrate nitrogen 0.5-10mg/L Phenol disulfonic acid spectrophotometry
  •  Nitrate 0.5-10mg/L Phenol disulfonic acid spectrophotometry
  •  Permanganate Index 0.2-10.0mg/L Potassium permanganate oxidation spectrophotometry
  •  Sulfate 5-100mg/L Barium chromate spectrophotometry
  •  Phosphate 0.05-20mg/L Ammonium molybdate spectrophotometry
  •  Iron Ion 0.05-3mg/L Spectrophotometry
  •  Copper Ion 0.05-3mg/L Spectrophotometry
  •  Lead 0.05-4.00mg/L Spectrophotometry
  •  Cyanide 0.0-1.0mg/L Spectrophotometry
  •  Arsenic 0.05-3.00mg/L Spectrophotometry
  •  aluminium 0.0-1.0mg/L Spectrophotometry
  •  Zinc 0.01-5.0mg/L Spectrophotometry
  •  Manganese 0.05-5.0mg/L Spectrophotometry
  •  Cadmium 0-1mg/L Spectrophotometry
  •  Nickel 0.05-5mg/L Spectrophotometry
  •  Sulfide 0.0-1.0mg/L Methylene blue spectrophotometry
  •  Volatile Phenol 0.1-3.0mg/L Spectrophotometry
  •  chloride 0.0-5.0mg/L Spectrophotometry
  •  Fluoride 0.0-2.0mg/L Spectrophotometry
  •  Water Hardness 0-50mg/L Spectrophotometry
Note: ● Standard Accessories ○ Optional Accessories
