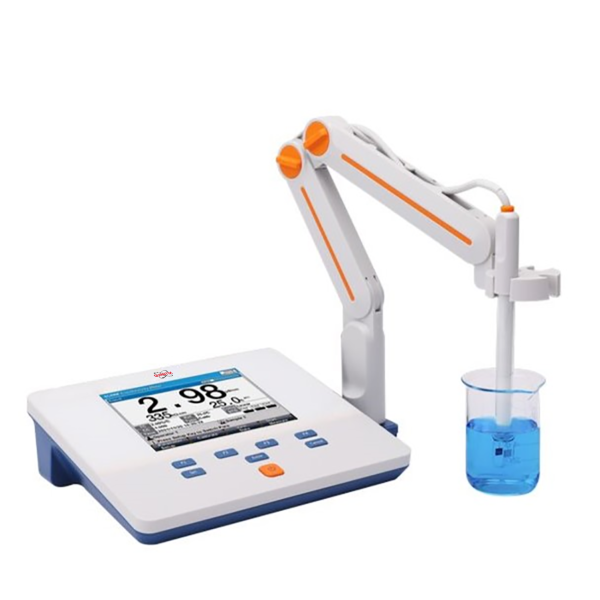

Benchtop Conductivity Meter (QXN-C500)

Benchtop Conductivity Meter (QXN-C500)

Description

The conductivity meter is a water quality analysis instrument developed for high-end water quality management and automatic control of medical multi-effect distilled water systems, boiler bottom water, condensate water, and heat exchange systems operating in higher temperature environment.
Benchtop Conductivity Meter (QXN-C500)
  • 7 inches high resolution LCD display.
  • Multi-reading feature allows auto-read, timed-read and continuous-read.
  • Automatic/Manual temperature compensation ensures accurate results.
  • Auto-hold feature senses and locks the measurement endpoint.
  • Data storage for 500 sets (GLP-compliant).
  • Support for USB and RS-232 communication.
  • Reset feature automatically resumes all settings back to factory default options.
  • IP54 waterproof.
  • 1-3 points calibration with standard recognition.
  • Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.
  • Temperature compensation type (none, linear, pure water).
Features
Model QXN-C500
Conductivity Range 0.000 μS/cm to 1000 mS/cm
Resolution 0.001 μS/cm minimum,

various with range selection
Accuracy ±0.5% FS
Reference Temperature 20, 25 ºC
Calibration Points Up to 3
Standard Recognition 84μS/cm, 1413μS/cm, 12.88mS/cm
Resistivity Range 5.00 Ω·cm~100.00 MΩ·cm
Resolution 0.01 Ω·cm minimum
Accuracy ±0.5% FS
TDS Range 0.00ppm~1000ppt
Resolution 0.001 ppm minimum, various with range selection
Accuracy ±0.5% FS
Salinity Range 0.0~80.0 ppt
Resolution 0.1 ppt
Accuracy ±1 ppt
Temperature Range -10 to 135 ºC, 14 to 275 ºF
Unit ºC, ºF
Resolution 0.1
Accuracy ±0.1
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 500 results each
GLP Features Yes
Conductivity with Temp. Probe 5-pin aviation connector
Outputs USB USB 2.0 flash memory device, PC
RS 232 printer
Display options Backlight Yes
Auto Shutdown 1~60 min, off
IP Rating IP54
Date and Time Yes
General Electricity AC Adapter, 100-240V AC input, DC9V output
Dimensions 242×195×68 mm
Package Dimension (W*D*H) 360*300*240mm
N.W. / G.W. 900g / 2.6 kg
Technical Specification
No Technical Specifications Available For This Product
