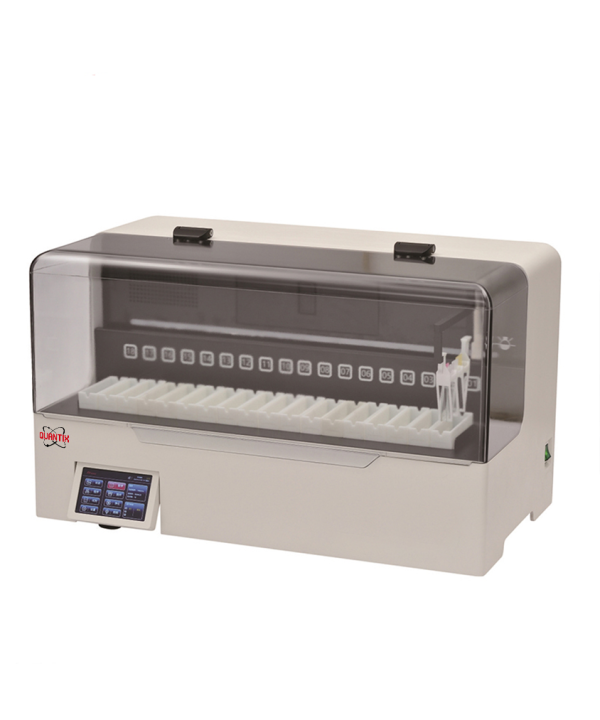

Automatic Slide Stainer (QXS-T231)

Original automatic stainframe identification function, support flexible adjustment of stain frame
Intelligent multi-program control can support the simultaneous operation of multiple stainframes
Automatic stirring function of stainframe, improve stain efficiency
Special therack leaching function can effectively prevent the rack with liquid
Intelligent cleaning function with water flow regulation and water level sensing protection system
Touch interface, with multi-language function
Integrated dyeing table structure design, easy to clean and maintain
Intelligent lighting system, multi-color status indicator function
Internal circulation activated carbon air purification system

Features

QXS-T231

Original automatic stainframe identification function, support flexible adjustment of stain frame
Intelligent multi-program control can support the simultaneous operation of multiple stainframes
Automatic stirring function of stainframe, improve stain efficiency
Special therack leaching function can effectively prevent the rack with liquid
Intelligent cleaning function with water flow regulation and water level sensing protection system
Touch interface, with multi-language function
Integrated dyeing table structure design, easy to clean and maintain
Intelligent lighting system, multi-color status indicator function
Internal circulation activated carbon air purification system

Technical Specification

Technical parameters

Capacity of Each Cup Approximately150 ml

Numbers of Station 18pcs（The cleaning station can be set freely.）

Slide rack capacity 12 specimen slides

Processing time of each station 0s – 59min,Repeatable Cup can be set

Stain program setting 10 sets of memory storage

Slide rack loading capacity 1~10pcs,Can run multiple staining rack continuously

Activated carbon filtration Can store 2 sets of filter element each time

Lighting brightness Stepless regulation

Electrical parameters

Working Voltage AC110 ~ 120V / AC 220V ~ 240V

Frequency 50Hz/ 60Hz

Power 400 W

Fuse F3A L 250V / F6A L 125V

Safety of electric I

Working environment

Ambient Temperature 5℃～45℃

Relative humidity ≤80%

Air pressure range 700hPa～1060hPa

Packaging parameters

Overall Dimensions 700x 400x 420mm

Net Weight 32kg
