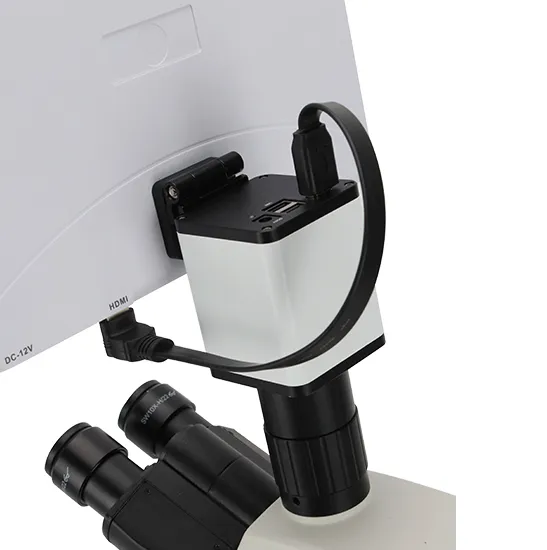

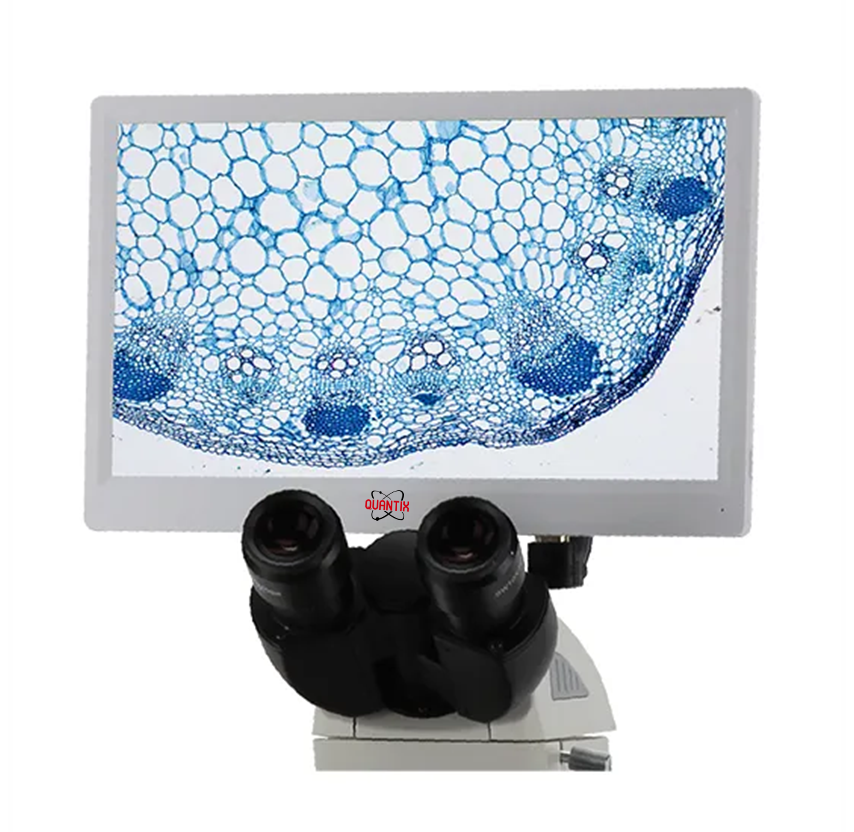

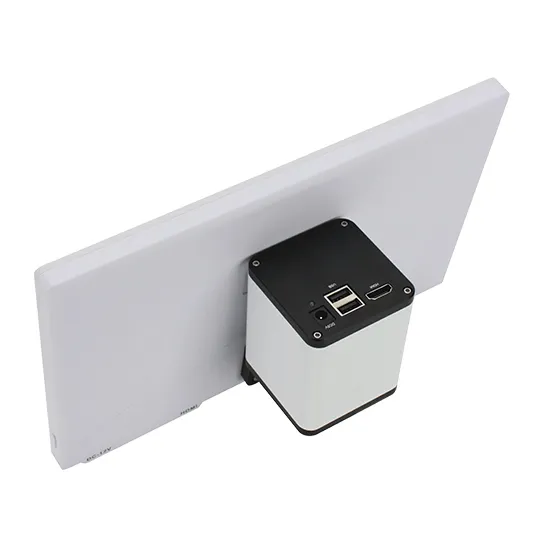

5.0MP LCD Digital Microscope Camera (QXM-ERA622)

This LCD Digital Camera is a highly cost-effective, reliable HD LCD camera which combines a full HD camera and a retina 1080P HD LCD screen. With the built-in software, it can be controlled by a mouse to take pictures, take videos and do simple measurement. Equipped with CMOS sensor and 11.6” retina HD LCD screen, it is developed specifically for different microscopy applications.

5.0MP LCD Digital Microscope Camera (QXM-ERA622) - Image 2

5.0MP LCD Digital Microscope Camera (QXM-ERA622) - Image 3

5.0MP LCD Digital Microscope Camera (QXM-ERA622) - Image 4

Application

LCD digital camera can be widely used in medical diagnosis, industrial production and inspection, laboratory research and related microscopy field for image, video capture and analysis. With the high image quality and easy to operate, it will be your best assistant.

Features

Control camera with mouse from USB port, no shaking.
11.6” retina HD LCD Screen, high definition and high quality color reproduction.
5.0MP still image capture and 1080P Video Recording.
Save image and video to USB flash drive.
HDMI Output from the camera to the LCD screen, frame rate up to 60fps.
Standard C-mount Interface for different microscopes and industrial lens.
Measurement function, the digital camera has complete measurement function.

Technical Specification

Product Model	QXM-ERA622
Digital Camera Part	Image Sensor	Color CMOS
	Pixel	5.0MP pixels
	Pixel size	1/2.8〞
	Menu	All-digital UI design
	Method of Operation	Mouse
	Lens interface	C-type
	Power DC	DC12V
	Output method	HDMI
	White Balance	Auto / Manual
	Exposure	Auto / Manual
	Display Frame rate	1080P@60fps(preview)/1080P@50fps(capture)
	Scanning method	Line by line scanning
	Shutter Speed	1/50s(1/60s)～1/10000s
	Operating Temperature	0℃～50℃
	Magnification / Zoom	Support
	Saving function	Support U-disk storage
Retina Screen	Screen Size	11.6 inch
	Aspect Ratio	16:9
	Display Resolution	1920 × 1080
	Display Type	IPS-Pro
	Brightness	320cd/m2
	Static Contrast Ratio	1000:1
	Input	1*HDMI Port
	Power Supply	DC 12V /2A External Adapter
	Dimension	282mm×180.5mm×15.3mm
	Net Weight	600g
